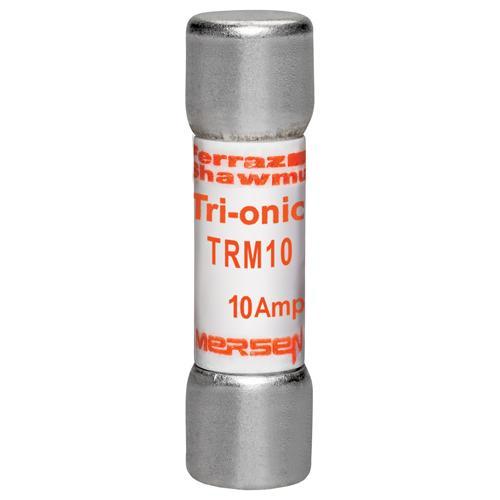

Mersen TRM10 low-voltage general purpose fuse, TRM - midget - time-delay 250V 10A 13/32 inch Dia x 1-1/2 inch L

Product Description

The MERSEN TRM10 is a Tri-Onic TRM time-delay midget fuse, rated for 250 volts AC and 10 amperes. It provides supplemental protection for small motors, small transformers, lighting circuits, and control circuits, featuring a 12-second time-delay at 200% rating to handle high inrush loads. This fuse is UL Listed to standard 248-14 File E33925 and CSA certified to standard C22.2 No. 248.14, ensuring compliance and safety for various applications.

• Time-delay for circuits with high inrush current
• 250 V AC rating for diverse applications
• Compatible with UltraSafe Fuseholders

Product Highlights

Provides supplemental protection for small motors, transformers, and lighting circuits with high inrush current.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM10
• Country of Origin: Mexico

Technical Specifications

• Certifications: UL Listed to standard 248-14 File E33925, CSA certified to standard C22.2 No. 248.14
• Applications: Small motors, small transformers, lighting circuits, control circuits, electrical, industrial
• UNSPSC Code: 39121600
• Fuse Type: Low Voltage Time Delay Cartridge
• Fuse Class: Midget
• Series: TRM
• Body Material: Poly Tube
• Body Dimensions: 13/32 inch Dia x 1-1/2 inch L
• Body Type: Cylindrical
• Mounting Type: Clip
• Response Time: 1.4 s
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 10 A
• Interrupt Rating: 10 kA at 250V
• Country Of Origin: MX
• Rejection Type: Non-Rejection
• Sub Brand: Tri-Onic
• Function: Time-Delay
• UPC: 782001746575
• Frequency: 50/60 Hz
• RoHS Status: ROHS3 Compliant
• Current Type: AC
• Speed Characteristic: Time Delay
• Terminal Material: Tin-Plated Copper
• Product Group: Low Voltage UL/CSA Fuses
• Insulating Material: GMG
• Time Delay Characteristic: 12 seconds (at 200% rated load)
• Category: Circuit Protection, Electrical, Specialty Fuses
