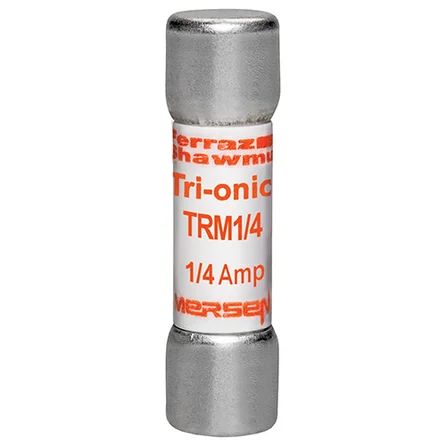

Mersen TRM1/4 Midget Fuse Time Delay 0.25A

Product Description

The Mersen TRM1/4 midget fuse is a time-delay fuse rated at 0.25A and 250V. These Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications.

• Time-delay functionality for handling inrush currents.
• Midget fuse size: 1-1/2" x 13/32".
• Interrupt rating of 10 kAIC.

Product Highlights

Mersen TRM1/4 is a 0.25A, 250V time-delay midget fuse suitable for supplemental protection of small motors and transformers.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM1/4
• Country of Origin: Mexico

Technical Specifications

• Amps: 0.25A
• Item: Midget Fuse
• Class: Midget
• Speed: Time Delay
• Length: 1.5"
• Diameter: 0.41"
• Mounting: Clip
• Fuse Amps: 0.25A
• Fuse Size: 1-1/2" x 13/32"
• Fuse Speed: Time Delay
• Body Material: GMG
• Connection Type: Ferrule
• Interrupt Rating: 10 kAIC
• AC Voltage Rating: 250V
• Fuse Voltage Rating: 250V
• Current Rating: 0.25 A
• Manufacturer Part Number: TRM1/4
• Primary Type: Single Use Fuses
• Series: TRM Series
• Voltage Rating: 250 V
• Alternate Mfr Part Number: F218298
