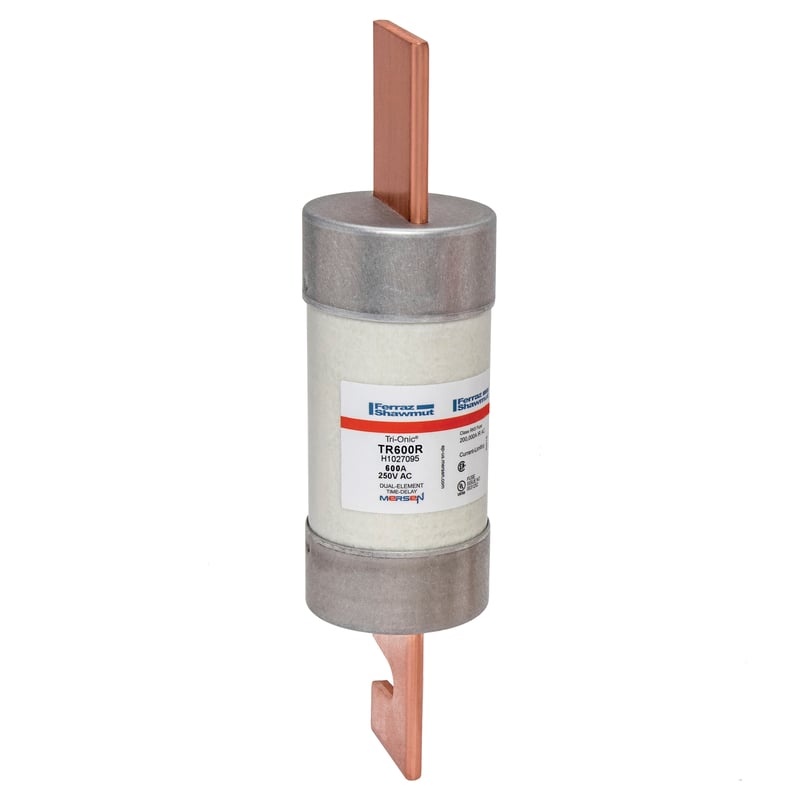

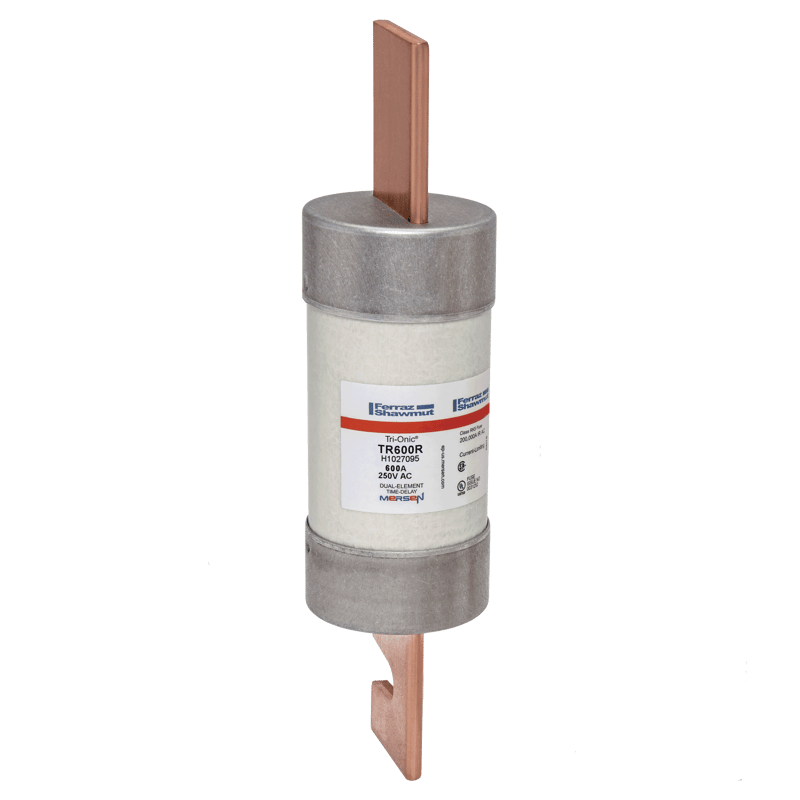

Mersen TR600R Fuse 600 A 250 VAC/160 VDC

Product Description

The Mersen TR600R is a Tri-Onic TR-R series current limiting time delay fuse engineered for overcurrent protection. This 600A, 250 VAC/160 VDC fuse is suitable for motors, transformers, service entrance equipment, feeders, and branch circuits. Its time delay handles starting and inrush currents.

• Time delay for motor start-ups and transformer inrush currents without nuisance opening
• Current limiting for low peak let-thru current
• Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

Offers time delay and current limiting, with a rejection style design to prevent replacement errors.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR600R
• Country of Origin: MX

Technical Specifications

• Type: Class RK5
• Fuse Types: LOW VOLTAGE
• Series: TR-R
• Element: Dual
• Body Size: 2-9/16 in Dia x 10-3/8 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Blade
• Voltage Rating: 250 VAC/160 VDC
• Amperage Rating: 600 A
• Interrupt Rating: 200 kA
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Application: Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment
• Standard: UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only
• AC or DC: AC/DC
• Frequency (Hz): 50/60 Hz
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 2.56 in
• Product Length: 10.38 in
• Body/Insulating Material: PolyTube
• Fuse Class: Class RK5
