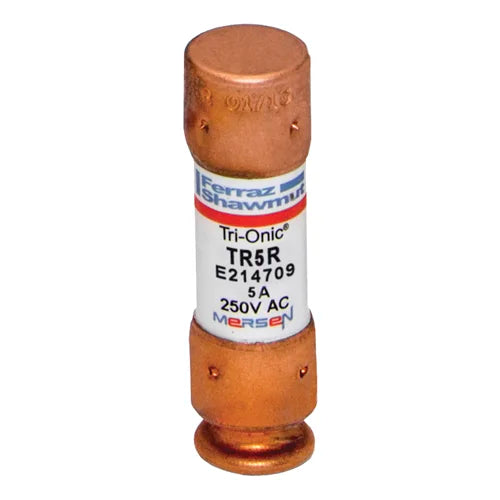

Mersen TR5R Tri-Onic Time-Delay/Class RK5 Fuse 5 Ampere 250VAC/160VDC 9/16 inches Diameter x 2 inches Length

Product Description

The MERSEN TR5R is a Tri-Onic Class RK5 time-delay fuse designed for overcurrent protection in motors, transformers, service entrance equipment, feeders, and branch circuits. Rated at 5 Ampere for 250VAC and 160VDC, this current-limiting fuse safely handles harmless starting and inrush currents. Its 9/16 inch diameter by 2 inch length cylindrical body ensures reliable performance in industrial settings.

• Time delay for motor start-ups and transformer inrush currents without nuisance opening
• Current limiting for low peak let-thru current
• Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

Provides overcurrent protection with time-delay and current-limiting capabilities for various electrical circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR5R
• Country of Origin: Mexico

Technical Specifications

• Input Voltage AC: 250 VAC
• Input Voltage DC: 160 VDC
• Amperage: 5 A
• Interrupting Rating AC: 200 kA
• Interrupting Rating DC: 20 kA
• Mounting Type: Clip
• Certifications: UL listed to standard 248-12 File E2137, CSA certified to standard C22.2 no. 248.12, DC listed to UL standard 248 TRS only
• Fuse Type: Current Limiting Low Voltage
• Application: Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
• Fuse Class: RK5
• Series: TR-R
• Element Type: Dual
• Body Material: Polyester
• Body Type: Cylindrical
• Terminal Type: Ferrule
• Rejection Type: Rejection
• Indication: Non-Indicating
• Sub Brand: Tri-Onic
• Characteristic: Time Delay
• Frequency: 50/60 Hz
• RoHS Compliant: Yes
• Terminal Material: Copper
