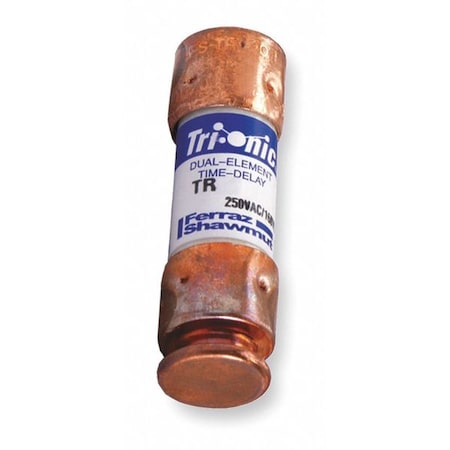

Mersen TR5-6/10R Fuse TR-R Class RK5 Time-Delay 250VAC 5.6A Ferrule

Product Description

The Mersen TR5-6/10R is a Class RK5 time-delay fuse with a ferrule connection. This Tri-Onic fuse is rated for 250VAC and 160VDC at 5.6A. It is designed for motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment and general-purpose equipment.

• Time-delay functionality
• Current-limiting capabilities
• Suitable for both AC and DC applications

Product Highlights

Offers time-delay for motor start-ups and transformer inrush currents. Provides current-limiting for low peak let-thru current. Features a rejection-style design to prevent replacement errors.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR5-6/10R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TR5-6/10R
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Tri-Onic®
• Application: Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment
• Connection: Ferrule
• Interrupt Rating: 200 kA
• Mounting: Clip
• Special Features: Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) Easy-to-read label for quick brand recognition and replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current limitation
• Standard: UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only
• UPC: 782001747749
• GTIN: 00782001747749
• Item Type: Class RK5
• Voltage Rating: 250 VAC/VDC
• Terminal Type: Ferrule
• Amperage Rating: 5.6 A
• Material: Polyester
• Mounting Type: Holder
• Class: RK5
• Type: Current Limiting
• Element: Dual
• Series: TR-R
• Body Style: Cylindrical
• UNSPSC: 39121606
• Vendor SKU: TR5-6/10R
• Standard & Approvals: UL 248-12 File E2137, CSA C22.2 No. 248.12, Rohs Compliant
• Fuse Amps: 5-6/10A
• Speed: Time Delay
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 160V DC
• Equivalent Series: ECNR, FLNR, FRN-R, TR-R
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 250VAC/160VDC
• Fits Fuse Block Style: Rejection
• Fuse Interrupt Rating: 200kA at 250VAC, 20kA at 160VDC
• Rejection / Nonrejection: Rejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
• Compatible Fuse Block Series: 2HKRFB
• Current Rating: 5.6 A
• Numeric ID: 2510416
• TR Series: TR Series
• Fuse Size: 2" L x 9/16" dia
