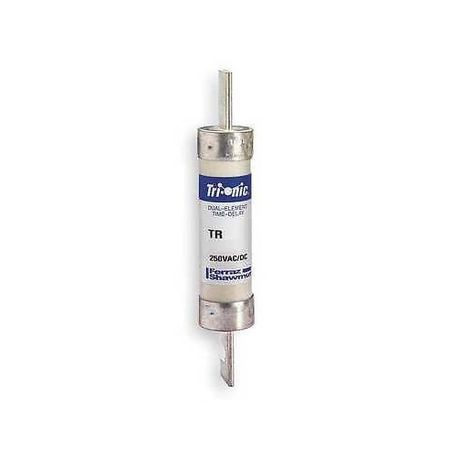

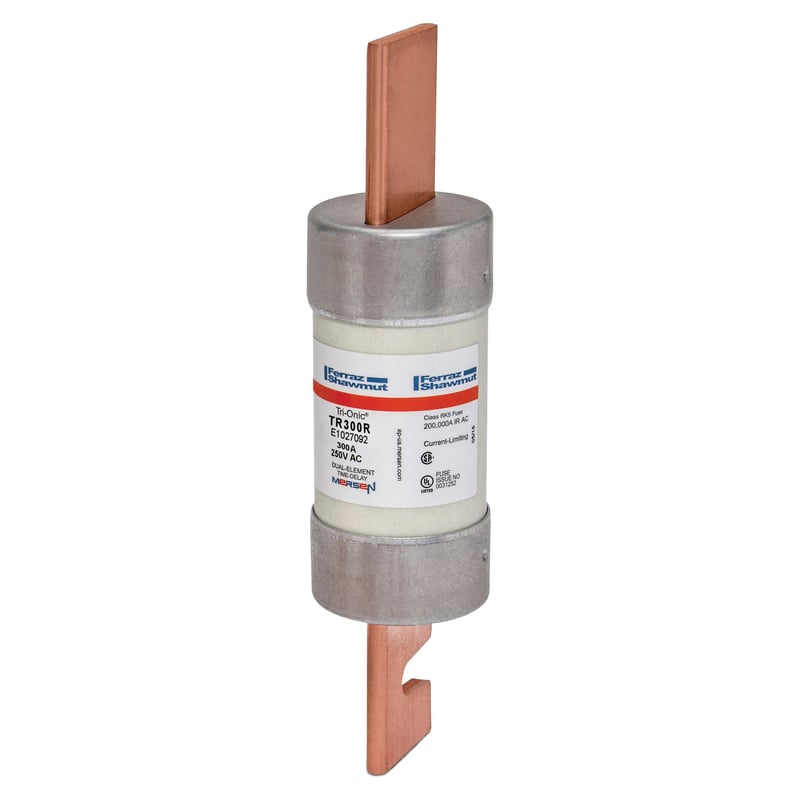

Mersen TR300R Current Limiting Low Voltage Time Delay Fuse 300A 250VAC/VDC

Product Description

The Mersen TR300R is a current limiting low voltage time delay fuse known for its reliability in overcurrent protection. It is designed to protect motors, transformers, service entrance equipment, feeders and branch circuits. This fuse ensures safety during high inrush currents and has a time delay characteristic suited to handle starting up conditions.

• Rated for 300 amps and 250 volts AC/DC
• Interrupt ratings of 200 kA at 250 VAC and 20 kA at 250 VDC
• Designed for clip mounting with a cylindrical body

Product Highlights

This fuse exhibits high-performance characteristics suitable for a variety of applications, effectively limiting current to protect electrical systems.

Product Information

Standard Information

• Brand: Mersen
• Part Number: TR300R

Technical Specifications

• Type: Current Limiting Low Voltage
• Amperage Rating: 300 A
• Voltage Rating: 250 VAC/VDC
• Interrupt Rating: 200/20 kA
• Mounting Type: Clip
• Body Type: Cylindrical
• Length: 8-5/8 inches
• Body Size: 2-1/16 inches Diameter
