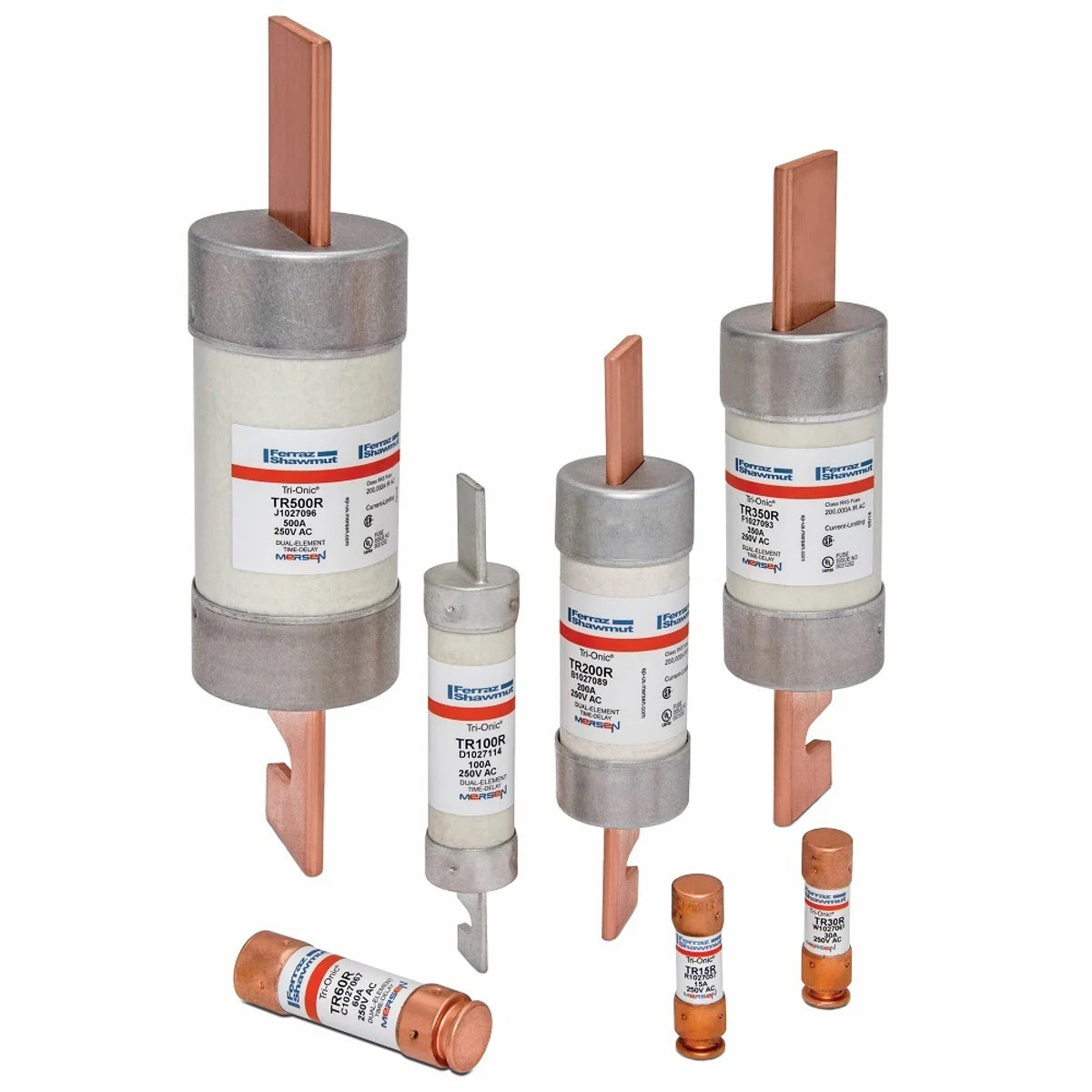

Mersen TR200R 250V 200A 7 1/8X1 9/10 TD

Product Description

The Mersen TR200R is a time-delay fuse designed for low voltage applications. This fuse can handle voltages up to two hundred fifty volts AC and DC, making it suitable for various circuits including motor circuits and branch circuits. The TR200R is classified as RK5 and has an amperage rating of two hundred.

• Voltage rating: 250V AC/DC
• Current limting with a time-delay feature
• UL listed and CSA certified

Product Highlights

This fuse features a cylindrical body and is designed to provide protection in motor circuits and branch circuits.

Product Information

Standard Information

• Type: Current Limiting
• Manufacturer: Mersen

Technical Specifications

• Voltage Rating: 250 VAC/VDC
• Amperage Rating: 200 A
• Interrupt Rating: 200/20 kA
• Body Size: 1-9/16 inches Diameter x 7-1/8 inches Length
• Mounting Type: Holder
• Application: Motor circuits, mains feeders, branch circuits, transformers, service entrance equipment, and general-purpose equipment
• Features: Time-delay for motor start-ups and transformer inrush currents, rejection-style design to prevent replacement errors
• UPC: 782001748081
