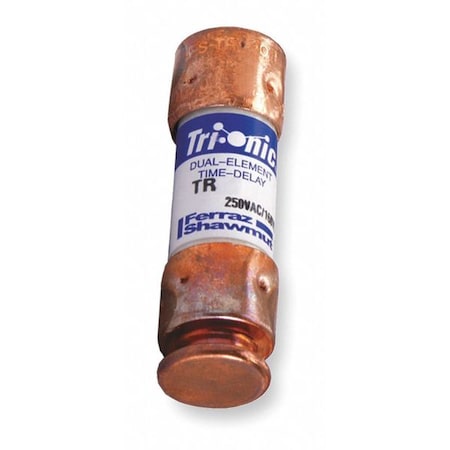

MERSEN Mersen TR2-1/4R 250V 2 1/4A 2X9/10 RK5 TD
MERSEN Mersen TR2-1/4R 250V 2 1/4A 2X9/10 RK5 TD

Mersen TR2-1/4R 250V 2 1/4A 2X9/10 RK5 TD

Brand: MERSEN
SKU: TR2-1/4R
Availability: In Stock

Ships same day if ordered by 12 pm
$25.17
$25.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN TR2-1/4R is a 250V 2 1/4A time delay fuse designed for low voltage applications. This Class RK5 fuse provides overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch circuits. The TR-R series safely manages starting and inrush currents. It has a cylindrical body made of polyester.

  • Time delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current limiting for low peak let-thru current
  • Rejection style design prevents replacement errors (when used with recommended fuse blocks)

Product Highlights

The MERSEN TR2-1/4R fuse is ideal for motor and transformer protection, offering time delay and current limiting capabilities.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: TR2-1/4R
  • Country of Origin: MX
Technical Specifications
Type
FUSES
Fuse Types
LOW VOLTAGE
UNSPSC Code
39121600
Class
RK5
Series
TR-R
Material
Polyester
Body Size
9/16 in Dia x 2 in L
Body Type
Cylindrical
Mounting Type
Clip
Terminal Type
Ferrule
Voltage Rating
250 VAC
Amperage Rating
2.25 A
Interrupt Rating
200 kA
Rejection/Non-Rejection
Rejection
Amps
2-1/4A
Element
Dual
Standards
CSA, UL
Fuse Speed
Time Delay
Connection Type
Ferrule
Fuse Holder Code
H
AC Voltage Rating
250V AC
DC Voltage Rating
250V DC
Equivalent Series
ECNR, FLNR, FRN-R, TR-R
Visual Indication
Nonindicating
Fuse Voltage Rating
250VAC/DC
Fits Fuse Block Style
Rejection
Functionally Equal To
Bussmann FRN-R, Littelfuse FLNR
Fuse Interrupt Rating
200kA at 250VAC, 20kA at 250VDC
Indicating / Nonindicating
Nonindicating
Equivalent Brand and Series
Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
Compatible Fuse Block Series
2HKRFB
