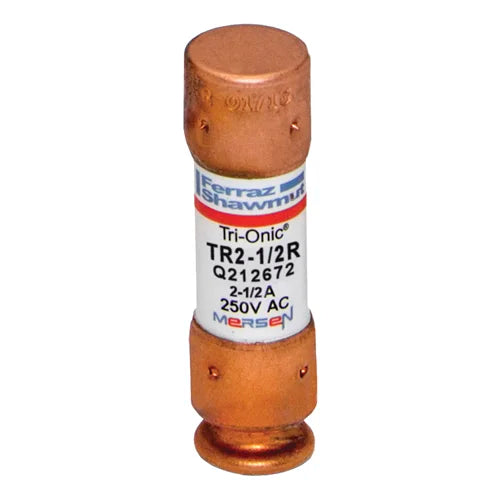

Mersen TR2-1/2R Fuse TR-R Class RK5 Time-Delay 250VAC/VDC 2.5A Ferrule

Product Description

The Mersen TR2-1/2R is a Class RK5, TR-R series, current limiting time delay fuse engineered for overcurrent protection. This 2.5A, 250VAC/VDC fuse is suitable for motors, transformers, service entrance equipment, feeders, and branch circuits. Its time-delay characteristics handle starting and inrush currents.

• Time delay for motor start-ups and transformer inrush currents without nuisance opening
• Current limiting for low peak let-thru current
• Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

The Mersen TR2-1/2R fuse provides reliable overcurrent protection with time-delay functionality and a rejection-style design.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: TR2-1/2R
• Country of Origin: MX

Technical Specifications

• Type: FUSES
• Fuse Types: LOW VOLTAGE
• Class: RK5
• Series: TR-R
• Element: Dual
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/VDC
• Amperage Rating: 2-1/2 A
• Interrupt Rating: 200/20 kA
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Application: Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment
• Standard: UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only
• Speed: Time Delay
• Length: 2"
• Diameter: 9/16"
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 250V DC
• Equivalent Series: ECNR, FLNR, FRN-R, TR-R
• Fuse Voltage Rating: 250VAC/DC
• Fits Fuse Block Style: Rejection
• Fuse Interrupt Rating: 200kA at 250VAC, 20kA at 250VDC
• Connection: Ferrule
• Frequency (Hz): 50/60 Hz
• AC or DC: AC/DC
• Fuse Class: Class RK5
• Product Diameter: 0.56 in
• Product Length: 2 in
