Product Description

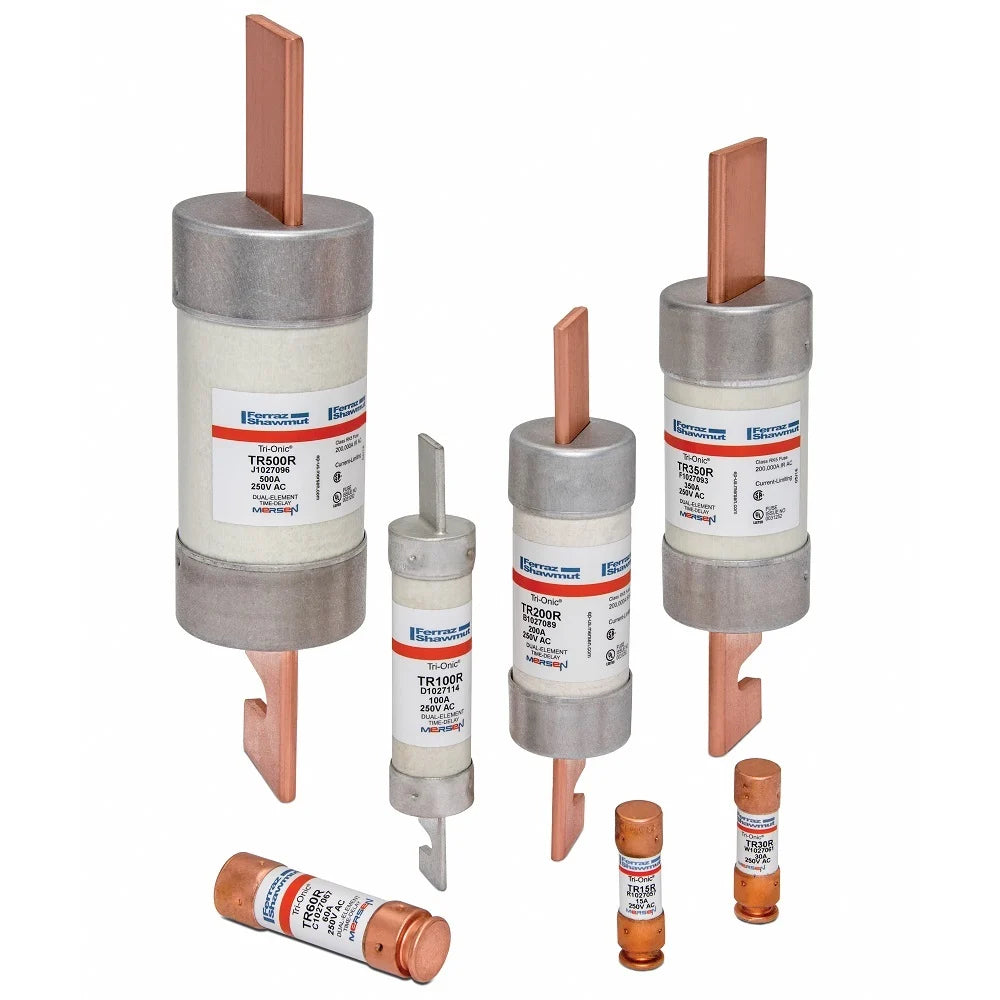

The Mersen TR15R is a time delay fuse rated for 250 volts and 15 amps. This fuse is used in areas where delayed reaction to a current spike is beneficial, such as motor circuits and branch circuits. The TR15R is designed to work with fuse blocks for efficient performance.
- Rated for AC and DC applications.
- Time-delay feature for motor start-ups.
- Built for safety with current-limiting capabilities.
Product Highlights
The Mersen TR15R fuse is ideal for protecting circuitry in commercial and industrial applications. Its time-delay feature helps prevent nuisance tripping during inrush currents from motors and transformers.
Product Information
Standard Information
-
Type: Fuses
-
Manufacturer: Mersen
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 250 V AC / 160 V DC
-
Interrupt Rating: 200 kA
-
Connection: Ferrule
-
Mounting: Clip
-
Size: 2 x 0.56 inches
-
Standards: UL listed to standard 248-12, CSA certified to C22.2 No. 248.12
-
UPC: 782001747824
