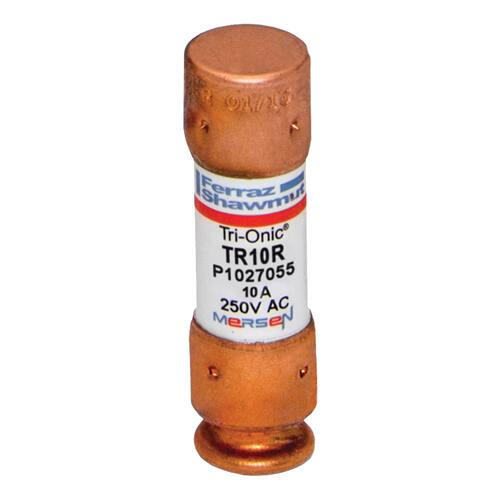

Mersen TR10R Tri-Onic Fuse 10 Amps 250V Pack of 2

Product Description

The MERSEN TR10R Tri-Onic fuse is a Class RK5 current-limiting, time-delay fuse engineered for overcurrent protection in electrical systems. It operates at 250V AC and 160V DC with a 10 Ampere rating, featuring a 200kA AC and 20kA DC interrupt rating. This fuse is suitable for motor circuits, transformers, service entrance equipment, feeders, and branch circuits, safely handling starting and inrush currents.

• Time-delay for motor start-ups and transformer inrush currents without nuisance opening.
• Current-limiting for low peak let-thru current.
• Rejection-style design prevents replacement errors.

Product Highlights

This MERSEN TR10R fuse offers reliable overcurrent protection with time-delay and current-limiting capabilities for various industrial applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR10R
• Country of Origin: Mexico

Technical Specifications

• Product Type: Fuse
• Fuse Type: Current Limiting Low Voltage
• Fuse Class: RK5
• Series: TR-R
• Sub-Brand: Tri-Onic
• Characteristic: Time-Delay
• Amperage Rating: 10A
• Voltage Rating: 250V AC/160V DC
• Interrupt Rating: 200kA AC @ 250V, 20kA DC
• Frequency: 50/60 Hz
• Body Material: Polyester
• Body Type: Cylindrical
• Body Diameter: 0.5625 inch
• Body Length: 2 inch
• Mounting Type: Clip
• Terminal Type: Ferrule
• Terminal Material: Copper
• Element Type: Dual
• Rejection Type: Rejection
• Indicating Type: Non-Indicating
• Certifications: CSA, RoHS Compliant, UL 248-12, CSA C22.2 No. 248.12, UL 248 TRS, UL 198L
• UPC: 782001747800
• GTIN: 00782001747800
• UNSPSC Code: 39121600
• Product Group: Low Voltage UL/CSA Fuses
