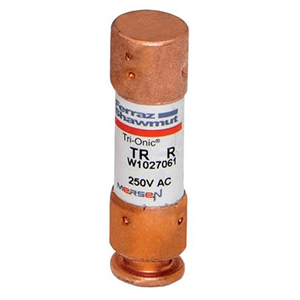

Mersen TR1-6/10R Tri-Onic TR-R Fuse 1.6 A (9/16 in Dia x 2 in L)

Product Description

The MERSEN TR1-6/10R Tri-Onic TR-R series fuse is a current limiting time delay fuse designed for overcurrent protection. It is suitable for motors, transformers, service entrance equipment, feeders, and branch circuits. The time delay allows for harmless starting currents and inrush currents. It has a voltage rating of 250 VAC/VDC and an interrupt rating of 200/20 kA.

• Time delay for motor start-ups and transformer inrush currents without nuisance opening
• Current limiting for low peak let-thru current
• Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

This Mersen Tri-Onic TR-R fuse provides time delay and current limiting, with a rejection style design to prevent replacement errors.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR1-6/10R
• Country of Origin: MX

Technical Specifications

• Class: RK5
• Series: TR-R
• Element: Dual
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/VDC
• Amperage Rating: 1.6 A
• Interrupt Rating: 200/20 kA
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Type: Time Delay
• Application: Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment
• Standard & Approvals: UL 248-12 File E2137, CSA C22.2 No. 248.12, Rohs Compliant
• Fuse Speed: Time Delay
• Connection Type: Ferrule
• Fuse Voltage Rating: 250VAC/DC
• Fuse Interrupt Rating: 200kA at 250VAC, 20kA at 250VDC
• Diameter: 9/16"
• Length: 2 in
• AC Voltage: 250 Volt AC
• AC Voltage Interruption: 200kA I.R.
• DC Voltage: 250 Volt DC
• DC Voltage Interruption: 20kA I.R.
• UL Information: UL Listed to Standard 248-12 File E2137
• CSA Information: CSA Certified to Standard C22.2 No. 248.12
