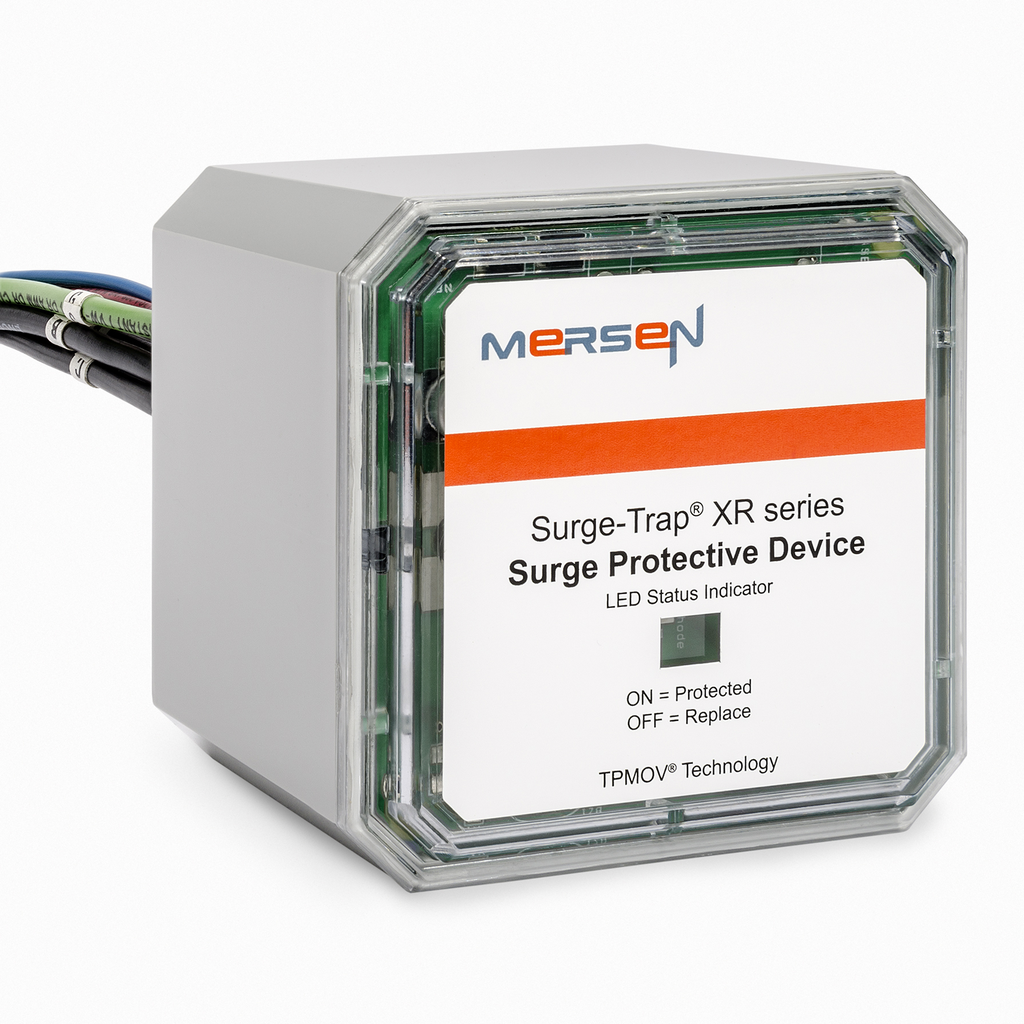

Mersen STXR208Y05 FER Surge Protective Device 208Y/120 VAC 3 Phase

Product Description

Mersen STXR208Y05 Surge Protective Device provides reliable protection against voltage spikes. It operates at 208Y/120 VAC with a frequency range of fifty to sixty hertz. This device is suitable for three-phase applications and is designed to meet UL1449 Fourth Edition standards.

• Includes advanced Mersen TPMOV technology for enhanced safety.
• Features an LED status indicator to signal operational condition.
• NEMA 4X enclosure for outdoor or indoor use.

Product Highlights

The STXR208Y05 is compact and allows for flexible panel or equipment mounting, making it an ideal choice for branch panel protection.

Product Information

Standard Information

• Brand: Mersen
• Part Number: STXR208Y05 FER

Technical Specifications

• Electrical Rating: 208Y/120 VAC
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 200 kA
• Peak Surge Current: 50 kA
• Nominal Discharge Current: 20 kA
• Protection Modes: L-G / L-N / L-L
• Operating Temperature: -40 to 85 deg C
• Mounting Type: Panel
• Indicator Type: LED/Remote Audible Alarm
• Dimensions: 3.35 in W x 3.35 in D
• Material: Aluminum/Polycarbonate
