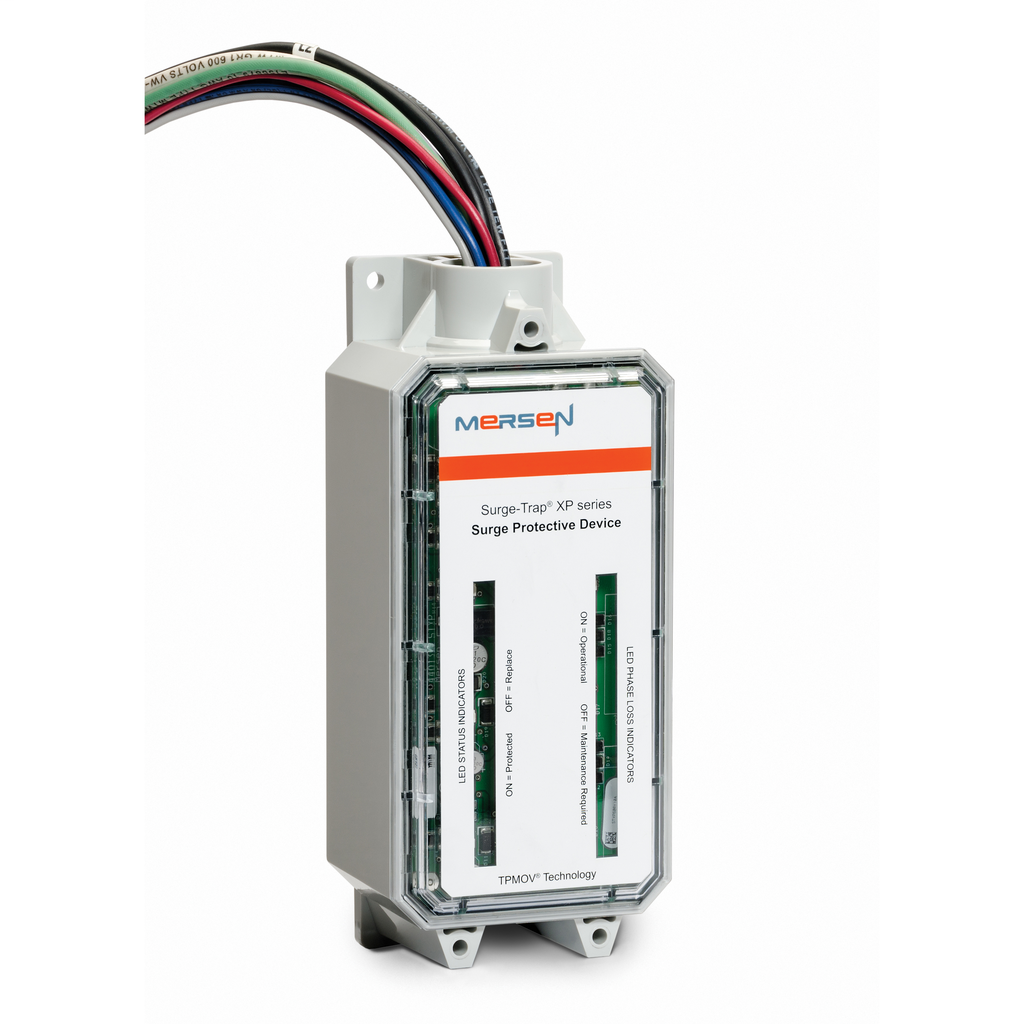

Mersen STXP240S10 XP T1 100kA 240/120V Surge Protection Device

Product Description

The Mersen STXP240S10 is a surge protection device designed for 240/120 volt applications. This device meets UL1449 Fourth Edition standards and offers features such as enhanced surge capacity and indicator lights for system status. It is suitable for installation on both the line and load side of a panel.

• Designed with Mersen TPMOV technology for safety and reliability
• Features LED indicators for operational status and maintenance needs
• Pre-wired with three feet of 12 AWG conductors for ease of installation

Product Highlights

The STXP240S10 provides essential protection from surges, making it suitable for all Type 1 and 2 SPD applications.

Product Information

Standard Information

• Manufacturer: Mersen
• Brand: Mersen

Technical Specifications

• Voltage: 240/120 Volt
• Frequency: 50-60 Hz
• Weight: 2.6 lb
• Width: 3.13 inches
• Height: 2.72 inches
• Length: 7.49 inches
• Max Surge Current: 100 kA
• Connection Type: Pre-wired with 3 ft 12 AWG conductors
• Mounting Type: Wall or panel mount
