Product Description

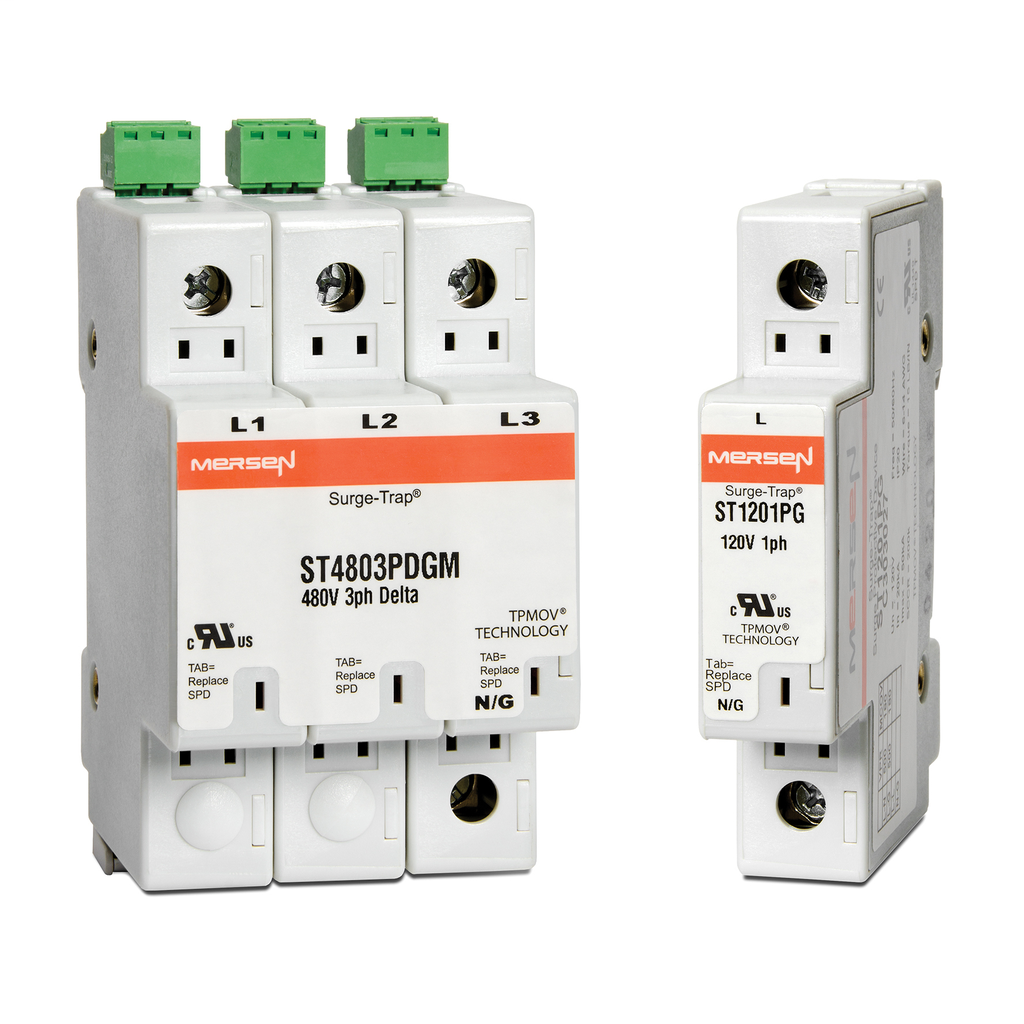

The Mersen ST1201PG is a one-phase surge protection device designed to protect electrical systems from voltage spikes. This device operates at one hundred twenty volts and features Mersen's patented TPMOV technology. It meets UL 1449 4th Edition standards, ensuring compliance and safety in its operation.
- No-fuse, fail-safe surge suppression
- DIN-rail mountable for easy installation
- Has a visual indicator for system status
Product Highlights
The Surge-Trap® Modular Surge Protective Device is ideal for use in various applications such as HVAC, telecommunications, and industrial automation.
Product Information
Standard Information
-
Manufacturer: Mersen
-
Catalog Number: ST1201PG
Technical Specifications
-
Voltage Rating: 120 VAC
-
Max Discharge Current: 50 kA
-
Short Circuit Current Rating: 200,000 A
-
Mounting Type: DIN Rail
-
Dimensions: 0.7 inches width, 2.7 inches height, 3.58 inches length
-
Weight: 0.25 lb
-
Response Time: Less than 25 nanoseconds
-
Application: Suitable for AC/DC distribution, HVAC systems, and medical equipment
