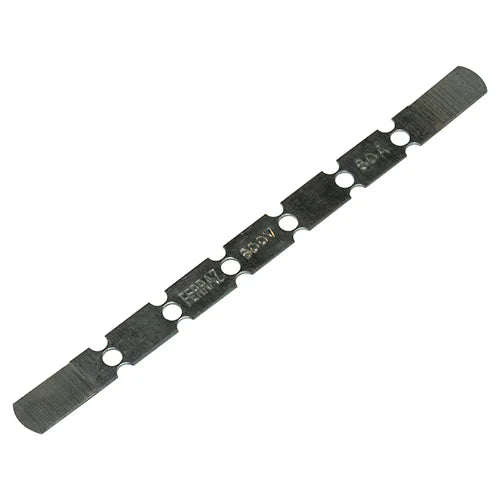

Mersen RLS60 Renewable Fuse Link 600VAC 60A

Product Description

The MERSEN RLS60 is a renewable fuse link designed for general purpose Class H applications where short-circuit currents do not exceed 10,000 amperes. These die-cut zinc replacement links from 3 to 600 amperes are available in 30 ratings. It is suitable for use with RF/RFS series class H renewable fuses and North American power fuses.

• Precision die-cut renewal links renew quickly and give repeatable performance
• Knurled bushings for ease-of disassembly
• Rugged construction for maximum service life

Product Highlights

The MERSEN RLS60 renewable fuse link provides reliable protection with easy disassembly and repeatable performance.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RLS60
• Country of Origin: MX

Technical Specifications

• Item number: RLS60
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Product Width: 0.44 in
• Product Length: 5.94 in
• Mounting Type: Ferrule
• Material: Die-Cut Zinc
• Standard & Approvals: UL 248-7, File No. E2137; CSA C22.2, No. 248.7
• Suitable For Use With: RF and RFS Series Class H Renewable Fuses, North American Power Fuses
• Series: RLS
• Rated Breaking Capacity: 10 kA
• Voltage Rating: 600 VAC
• Current Rating: 60 A
• Manufacturer Part Number: RLS60
• Termination: Cartridge
• Class: H
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Approval Agency: CSA, UL
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Size / Dimension: 1.063" Dia x 5.472" L (27.00mm x 139.00mm)
