Mersen RLS40 Fuse RLS Series 40A

Product Description

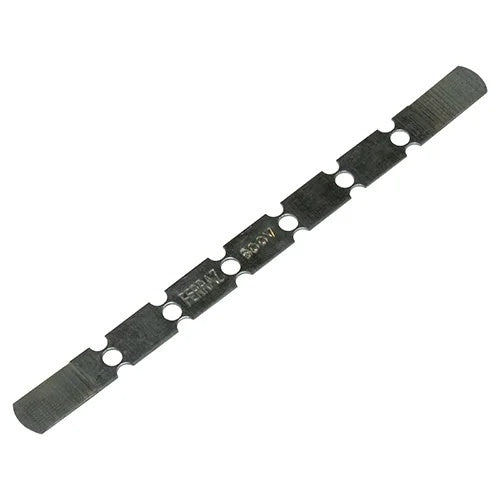

The MERSEN RLS40 is a Class H renewable fuse suitable for applications where short-circuit currents do not exceed 10,000 amperes. This 600VAC, 40A fuse link is designed for use with RLS series die-cut zinc replacement links. It is ideal for general purpose loads in electrical and industrial settings.

• Fast-Acting
• Suitable for general purpose loads where short circuit currents are 10000 A or less
• UL listed to standard 248-7 File E2137; CSA certified to standard C22.2 no. 248.7

Product Highlights

The MERSEN RLS40 fuse provides reliable performance and safety with its robust die-cut zinc construction.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RLS40
• Country of Origin: Mexico

Technical Specifications

• Item number: RLS40
• Description: Fuse RFS - Class H - Fast-Acting Link 600VAC 40A
• EAN/UPC Code: 068938730895
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 40 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Product Width: 0.44 in
• Product Length: 5.94 in
• Product group: Low Voltage UL/CSA Fuses
• Material: Die Cut Zinc
• Application: For general purpose loads where short circuit currents are 10000 A or less
• Mounting Type: Requires Holder
• Voltage Rating: 600
• Type: Renewable
• Series: RLS
• Suitable For Use With: RLS40 Class H Cylindrical North American Power Fuse
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Voltage Rating - AC: 600 VAC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Class: H
• Part Status: Active
• Approval Agency: CSA, UL
• Breaking Capacity @ Rated Voltage: 10kA
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 40A
• Fuse Type (UL): Class H
• Fuse Amperage Rating: 40 Amp
• Component: Fuse
• Fuse Voltage Rating: 600V
• MFR #: RLS40
• Item: Fuse Link
• Amps: 40A
• Speed: Fast-Acting
• AC Voltage Rating: 600V AC
• DC Voltage Rating: Not Rated
• Fuse Amps: 40A
• APPROVALS & STANDARDS: UL listed to standard 248-7 File E2137; CSA certified to standard C22.2 no. 248.7
• Interrupt Rating: 10,000 amperes
