Mersen RL300 Fuse RF - Class H - Fast-Acting Link 250VAC 300A

Product Description

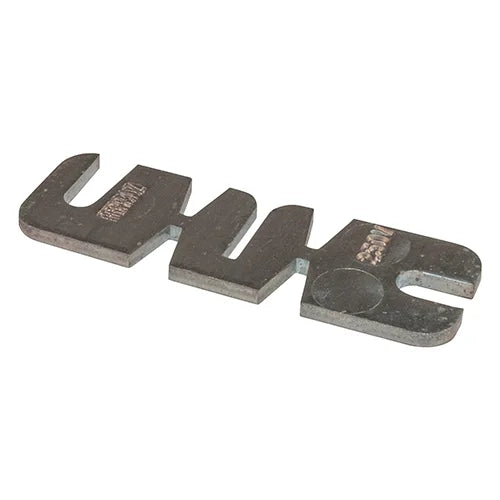

The MERSEN RL300 is a Class H fast-acting renewable fuse link suitable for applications where short-circuit currents do not exceed 10,000 amperes. These RF general purpose fuses are for replacement fuse links and are die-cut zinc replacement links from 2 to 600 amperes in 31 ratings.

• Knurled bushings for ease-of disassembly
• Rugged construction for maximum service life
• Precision die cut renewal links renew quickly and give repeatable performance

Product Highlights

The MERSEN RL300 fuse is ideal for general-purpose loads with short-circuit currents of 10000 A or less. It features a renewable, fast-acting Class H design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RL300

Technical Specifications

• Item number: RL300
• Description: Fuse RF - Class H - Fast-Acting Link 250VAC 300A
• EAN/UPC Code: 068938730550
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 300 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Product Width: 1.05 in
• Product Length: 3.38 in
• Product group: Low Voltage UL/CSA Fuses
• Category: Fuse Link PC Board Mount
• Amperage: 300 Amp
• Applications: For General-Purpose Loads Where Short-Circuit Currents are 10000 A or Less
• Interrupt Rating: 10 kAIC
• Type: Renewable, Class H, Fast Acting
• Voltage: 250 VAC
• Brand: Ferraz Shawmut Canada, Inc.
• 12-Digit UPC: 068938730550
• Class: H
• GTiN: 30068938730551
• Product UPC: 06893873055
• UNSPSC: 39121627
• Material: Die Cut Zinc
• Application: For general purpose loads where short circuit currents are 10000 A or less
• Mounting Type: Clip
• Voltage Rating: 250
• Series: RL Series
• Amperage Rating: 300
• Suitable For Use With: RF300 Class H Cylindrical North American Power Fuse
• Frequency: 50/60 Hz
