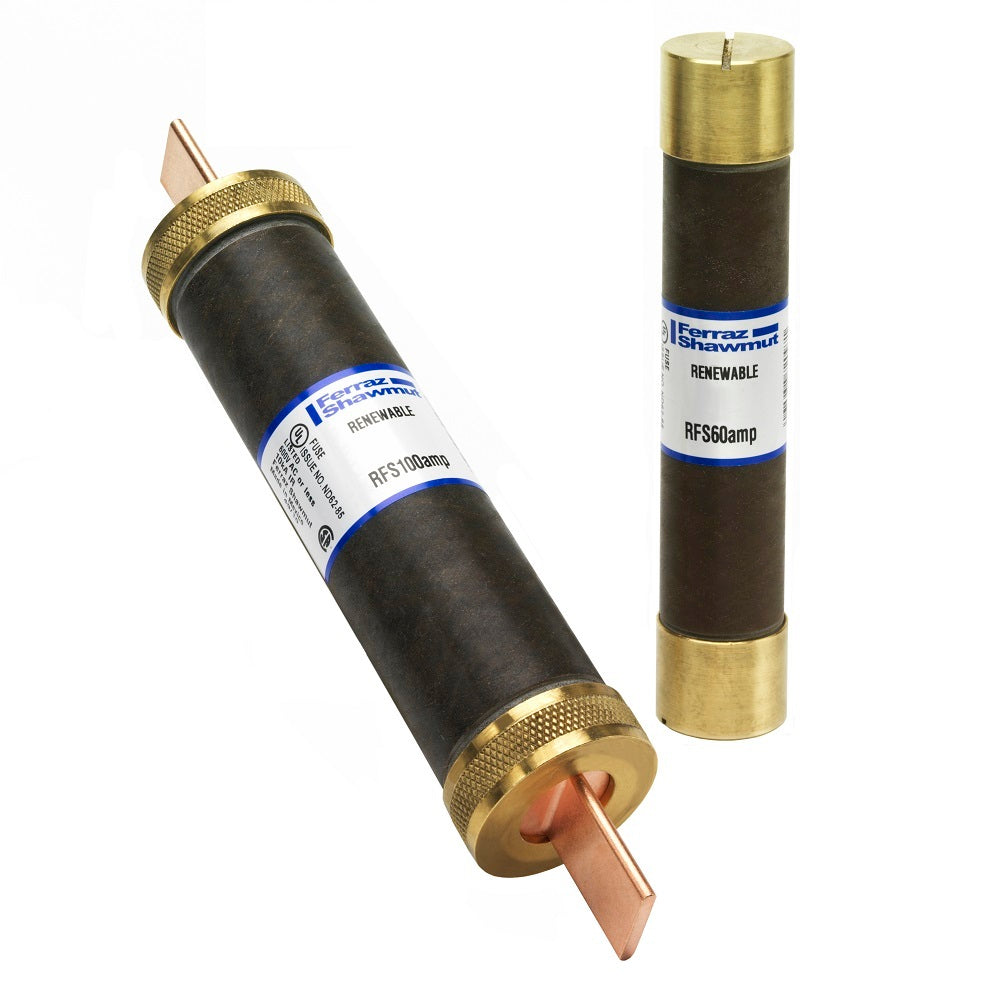

Mersen RFS60 Fuse RFS - Class H - Fast-Acting 600VAC 60A Ferrule

Product Description

The Mersen RFS60 is a class H fuse designed for fast-acting applications at a voltage rating of six hundred volts AC and an amperage rating of sixty amps. This renewable ferrule fuse is suitable for general-purpose loads where short circuit currents do not exceed ten thousand amperes. Its rugged design ensures reliability and a long service life.

• Amperage Rating: 60 Amps
• Interrupt Rating: 10 kA
• Connection Type: Ferrule

Product Highlights

This fuse is easy to disassemble and renew, thanks to its knurled bushings. The construction is robust for extended use, making it ideal for electrical systems.

Product Information

Standard Information

• Brand: Mersen
• Catalog Number: RFS60
• Country of Origin: Mexico

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Interrupt Rating: 10 kA
• Application: General purpose loads where short circuit currents are 10,000 amperes or less
• Mounting Type: Clip
• Special Features: Knurled bushings for ease of disassembly, rugged construction for maximum service life, precision die-cut renewal links renew quickly
• Standards: UL listed to standard 248-7, CSA certified to standard C22.2 No. 248.7
