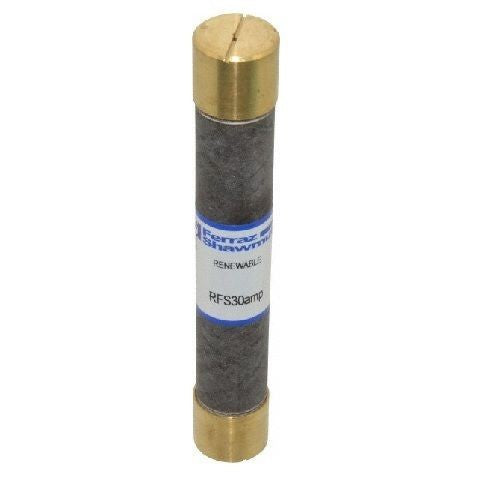

Mersen RFS30 Fuse Class H Fast-Acting 600VAC 30A Ferrule

Product Description

The Mersen RFS30 is a general purpose Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. It features knurled bushings for ease of disassembly and rugged construction for maximum service life. The fuse uses precision die-cut renewal links for repeatable performance.

• Fast-Acting fuse with a 30A amperage rating.
• Designed for 600VAC applications.
• Class H fuse with a 10kA interrupting rating.

Product Highlights

The Mersen RFS30 is ideal for general purpose loads where short-circuit currents are 10,000 amperes or less. It provides reliable protection and easy maintenance with renewable links.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RFS30
• Country of Origin: United States

Technical Specifications

• Item number: RFS30
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting Type: Clip
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• Volts AC: 600
• Class: H
• Fuse Type: Renewable
• Interrupting Rating: 10,000 AIC @ 600VAC
• Physical Size: 13/16" x 5"
• Interrupt Rating: 10 kA
• Material: FWGE
• Body Size: 13/16 in Dia x 5 in L
• Body Style: Cylindrical
• Catalog ID: GOURFS30
• Series: RFS
• Voltage Rating: 600 VAC
• Application: For general purpose loads where short-circuit currents are 10000 A or less
• Standard & Approvals: UL 248-7, File No. E2137, CSA C22.2, No. 248.7
• Alternate Mfr Part Number: C222596
• Contact Material: Brass
• Current Rating: 30 A
• For Use With: Fuses
• Manufacturer Part Number: RFS30
• Primary Type: Single Use Fuses
• Speed: Fast Acting sec
• Standards: UL Listed to Standard 248-7, File E2137 CSA Certified to Standard C22.2, No. 248.7
• Termination: Cartridge
• Type: Cylindrical Fuses
• Manufacturer: MERSEN
• MPN: RFS30
