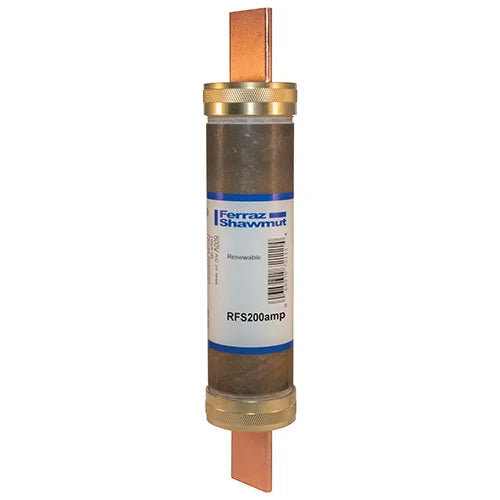

Mersen RFS200 Fuse RFS - Class H - Fast-Acting 600VAC 200A Blade

Product Description

The MERSEN RFS200 is a general purpose Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. It is a fast-acting fuse with a voltage rating of 600VAC and an ampere rating of 200A. The fuse is designed with blade-style terminals for clip mounting.

• Class H fuse
• Fast-Acting
• Suitable for application where available short-circuit currents do not exceed 10,000 amperes

Product Highlights

The MERSEN RFS200 is a Class H renewable fuse with a voltage rating of 600VAC and an ampere rating of 200A. It is a fast-acting fuse designed for clip mounting.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RFS200

Technical Specifications

• Item number: RFS200
• Description: Fuse RFS - Class H - Fast-Acting 600VAC 200A Blade
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 200 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.81 in
• Product Length: 9.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• Product Weight: 1.42 lb
• Volts AC: 600
• Class: H
• Fuse Type: Renewable
• Current Limiting: Non-Current Limiting
• Interrupting Rating: 10,000 AIC @ 600VAC
• Voltage Rating - AC: 600 VAC
• Response Time: Fast Blow
• Series: RFS
• Applications: Electrical, Industrial
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 10kA
• Package / Case: Cylindrical, Blade Terminals
• Current Rating (Amps): 200A
• Size / Dimension: 1.811" Dia x 9.606" L (46.00mm x 244.00mm)
