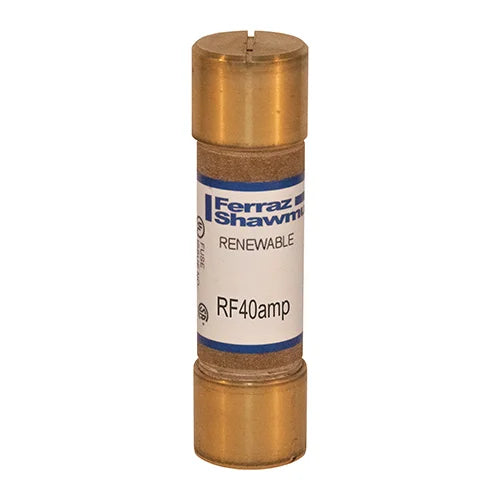

Mersen RF40 Mfs Rf40 Fuserenewable 250 40 Ampere

Product Description

The MERSEN RF40 is a low voltage UL power fuse, Class H, with fast-acting characteristics. Rated at 250 VAC and 40 Ampere, it has an interrupting rating of 10 Kiloampere. Features a ferrule terminal type, cylindrical body style, and is designed for general purpose loads. Commonly used in applications where short-circuit currents do not exceed 10,000 amperes.

• Low Voltage UL Power Fuse
• Fast Acting
• Voltage Rating 250 VAC

Product Highlights

Class H renewable fuse suitable for general purpose applications with a 250V voltage rating and 40A current rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RF40

Technical Specifications

• Type: Class H
• Voltage Rating: 250 VAC
• Current Rating: 40 Ampere
• Interrupting Rating: 10 Kiloampere
• Terminal Type: Ferrule
• Diameter: 0.8125 Inch
• Length: 3 Inch
• Approval: UL 248-7, CSA C22.2
• Body Style: Cylindrical
• Body Material: FWGE
• Contact Material: Brass
• Mounting Type: Clip
• Application: General Purpose Loads
• Frequency (Hz): 50/60 Hz
• AC or DC: AC
• Speed/Characteristic: Fast-Acting
