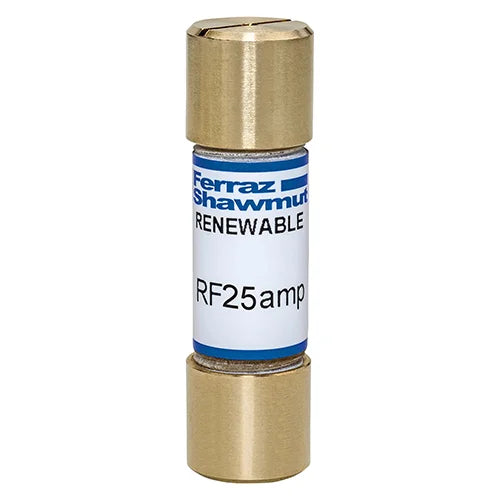

Mersen RF25 Fuse Class H Fast-Acting 250VAC 25A Ferrule

Product Description

The MERSEN RF25 is a Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. This fast-acting fuse is rated for 250VAC and 25A, and it features a ferrule connection. It is designed for general purpose use.

• Class H
• Fast-Acting
• 250VAC
• 25A

Product Highlights

The MERSEN RF25 fuse provides fast-acting protection for general purpose applications up to 250VAC and 25A.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RF25
• Country of Origin: Mexico

Technical Specifications

• Item number: RF25
• Description: Fuse RF - Class H - Fast-Acting 250VAC 25A Ferrule
• EAN/UPC Code: 068938720117
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 25 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Specialty Fuses
• Voltage Rating - AC: 250 VAC
• Response Time: Fast Blow
• Series: RF
• Applications: Electrical, Industrial
• Packaging: Bulk
• Class: H
• Part Status: Active
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 10kA
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 25A
• Size / Dimension: 0.551" Dia x 2.008" L (14.00mm x 51.00mm)
• Characteristics: Renewable, General Purpose
• Interrupting Rating: 10kA IR
• Voltage: 250V AC
• Amps: 25A
• Connection: Ferrule
