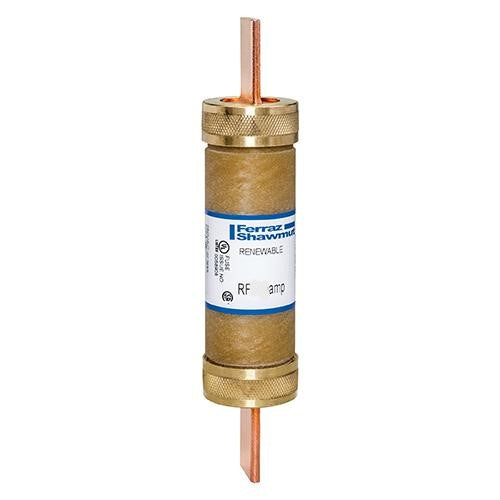

Mersen RF200 Fuse RF - Class H - Fast-Acting 250VAC 200A Blade

Product Description

The MERSEN RF200 is a Class H fast-acting renewable fuse suitable for applications where short-circuit currents do not exceed 10,000 amperes. For replacement fuse links, select RL series die-cut zinc replacement links from 2 to 600 amperes in 31 ratings. This fuse is ideal for general purpose applications.

• Class H
• General Purpose
• Fast-Acting

Product Highlights

The MERSEN RF200 fuse offers reliable protection with a fast-acting design and renewable fuse links.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RF200

Technical Specifications

• Item number: RF200
• EAN/UPC Code: 068938720476
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 200 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.56 in
• Product Length: 7.13 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: S201956
• Brand: Mersen
• Current Rating: 200 A
• Manufacturer Part Number: RF200
• Primary Type: Renewable Fuses
• Series: RF/RFS Series
• Termination: Blade
• Voltage Rating: 250 V
• Interrupt Rating: 10,000 AIC @ 250VAC
• Speed: Fast Acting
• Class: Class H/Non-Current Limiting
• Approvals: UL and CSA
• Fuse Type: Renewable
• Volt Rating: 250V AC
• Overall Length: 7-1/8 in
• Diameter: 1.5625 in
• Blade Or Ferrule Length: 1.3750 in
• Blade Height: 1.1250 in
• Blade Width: .1875 in
• UL Approvals: Standard 248-7
• CSA Approval: Standard C22.2 No.248.7
• Mounting Type: Blade
