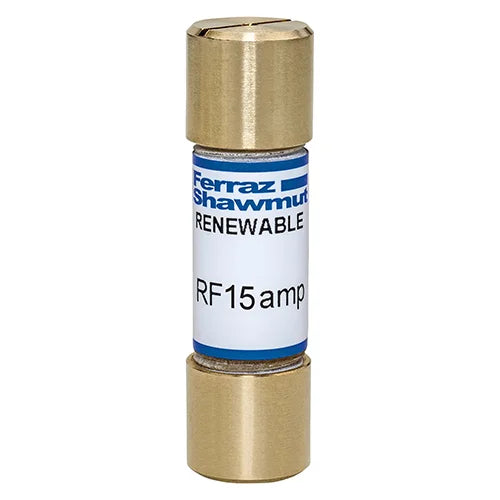

Mersen RF15 Fuse Class H Fast-Acting 250VAC 15A Ferrule

Product Description

The MERSEN RF15 is a Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. It features knurled bushings for ease of disassembly and rugged construction for maximum service life. For replacement fuse links, select RL series die-cut zinc replacement links from 2 to 600 amperes.

• Fast-Acting
• 250VAC
• 10 kA Interrupting Rating

Product Highlights

The MERSEN RF15 fuse is a reliable solution for general purpose applications requiring a Class H fuse.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RF15
• Country of Origin: Mexico

Technical Specifications

• Item number: RF15
• EAN/UPC Code: 068938720070
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 15 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• Volts AC: 250
• Fuse Type: Renewable
• Current Limiting: Non-Current Limiting
• Physical Size: 9/16" x 2"
• Interrupting Rating: 10,000 AIC @ 250VAC
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: H219910
• Brand: Mersen
• Current Rating: 15 A
• Manufacturer Part Number: RF15
• Primary Type: Renewable Fuses
• Series: RF/RFS Series
• Termination: Cartridge
• Voltage Rating: 250 V
• Amps: 15A
• Length Overall: 2 in.
• Diameter: 0.562 in.
• Connection: Ferrule
• Voltage: 250 V AC
• Interrupt Rating: 10 kA
• Body Style: Cylindrical
• Body Diameter: 9/16 in
• Body Length: 2 in
• Characteristics: Renewable, General Purpose
