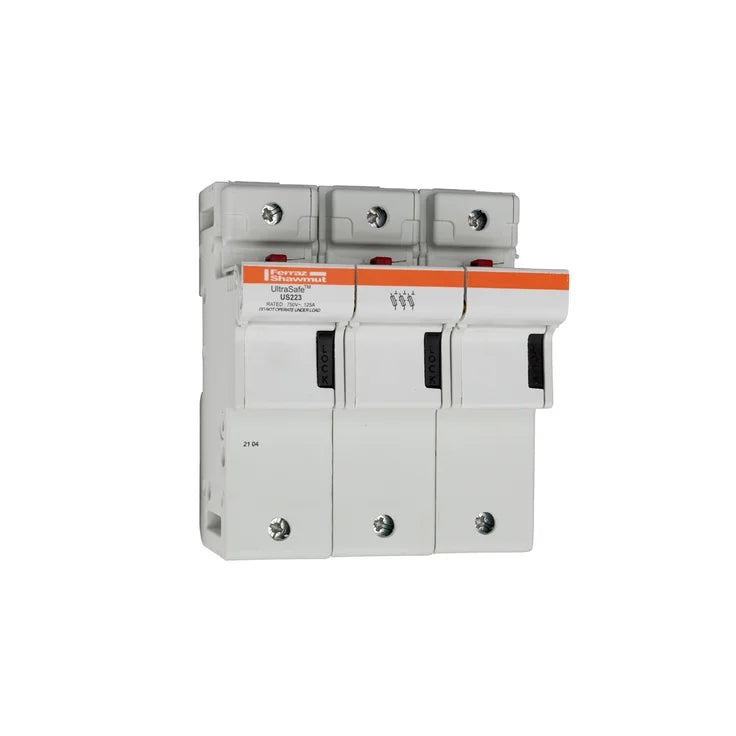

Mersen R331169 Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 3-Pole

Product Description

The MERSEN R331169 is an innovative and comprehensive UltraSafe™ range fuse holder. This modular fuse-holder is finger-safe under IEC standards to an IP20 grade of protection, including fuse changing. It is made of tough and durable thermoplastic or thermoset material.

• Finger-safe under IEC standards to an IP20 grade of protection
• Modular fuse-holders available in 1, 2, 3 or 4 poles
• Made of tough and durable thermoplastic or thermoset material

Product Highlights

The MERSEN R331169 fuse holder is finger-safe, modular, and made of durable material.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: R331169
• Country of Origin: Tunisia

Technical Specifications

• Item number: R331169
• Catalogue No: US223
• Description: Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 3-Pole Pressure Plate IP20
• EAN/UPC Code: 0782001311339
• Rated voltage AC UL: 800 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50 ... 60 Hz
• Rated voltage AC IEC: 690 V
• Rated voltage DC IEC: 690 V
• Ampere Rating: 125 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Current Rating (SCCR): 100 kA
• Fuse Size: 22x58
• Design Details: triple pole
• Number of Poles: 3-Pole
• Wiring range: 1/0 - #14
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Clip
• Fuse Installation Method: Clip-in
• Torque Rating: 35.403 lb-in
• Max Fuse Rating: 125 A
• Housing Material: Polyamide
• Rated Impulse Withstand Voltage: 8 kV
• Rated Insulation Voltage: 750 V
• Installation Mounting: DIN rail acc. EN 60715
• Product Width: 4.13 in
• Product Length: 3.01 in
• Product Height: 5.02 in
• Product group: Fuse Holders
• Body/Insulating Material: Polyamide
• Product Weight: 1.416 lb
• Conventional Free Air thermal Current With Fuse-Links Ith: 125 A
• Category: Circuit Protection
• Fuseholders: Fuseholders
• For Use With/Related Products: 22mm x 58mm
• Mfr: Mersen USA Newburyport-MA L.L.C.
• Fuse Type: Cartridge
• Series: UltraSafe™ US22
• Fuseholder Type: Holder
• Packaging: Bulk
• Number of Circuits: 3
• Part Status: Active
• Voltage: 1000V
• Mounting Type: DIN Rail
• Orientation: Vertical
• Termination Style: Screw Terminal, Pressure Plate
• Current Rating (Amps): 125 A
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• REACH Status: REACH Unaffected
• Fuse Amperage Rating: 125 Amp
• Component: Fuse Holder
• Fuse Voltage Rating: 800 Volt
• Volt Rating: 800V AC/1000V DC
• Poles: 3
• Type: Fuse Holder
