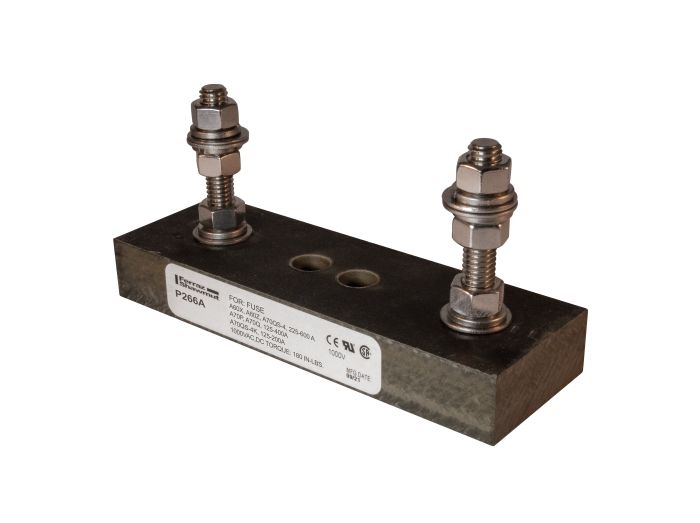

Mersen P266A Fuse Block 1000VAC 1000VDC 400A 1-Pole Stud

Product Description

The MERSEN P266A fuse block is designed for Form 101 fuses and features glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips, and mounting hardware are tin or zinc-plated. It supports 1000VAC and 1000VDC, with a 400A current rating.

• Accommodates bolt-in fuses
• Tin or zinc-plated studs, clips, and mounting hardware
• Suitable for A60X, A60Z and A70QS-4 Series Form 101 Fuse

Product Highlights

This fuse block is ideal for semiconductor fuse applications, providing reliable protection with its robust construction and high voltage rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: P266A

Technical Specifications

• Item number: P266A
• Description: Fuse Block 1000VAC 1000VDC 400A 1-Pole Stud center to center: 4.06 inch
• EAN/UPC Code: 782001974398
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 400 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Current Rating (SCCR): 10 kA
• Number of Poles: 1-Pole
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Stud
• Fuse Installation Method: Bolt-in
• Torque Rating: 144 lb-in
• Max Fuse Rating: 400 A
• Installation Mounting: Direct Screw Mount
• Product Width: 3 in
• Product Length: 6 in
• Product Height: 3 in
• Product group: Fuse Bases
• Body/Insulating Material: Phenolic
• Voltage Rating: 1000 VAC/VDC
• Stud Size: 3/8-16
• UL Recognized File: E52283
• CSA Certified: C22.2, Class 6225, File 32169
• Manufacturer: Mersen
• Product Series: P266
• Family Series: Mersen Fuseblocks & Holders, P266 Series
• Current Rating: 600 A
• Poles: 1
• Fuse Type: Seminconductor
• Mounting: Surface Mount
• Trip Indicator: No
• Reinforced: No
• Enclosed: No
• Approvals: CSA, UL
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Amperage Rating: 400
• Voltage: 1000
• Series: P266
• Catalog Number: P266A
• Catalog / Class: Fuse Block
• SKU: P266A
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: Y212380
• Brand: Mersen
• Class: Semiconductor
• Dimensions: 3.00 in H X 3.00 in W X 6.00 in L
• Manufacturer Part Number: P266A
• Primary Type: Fuse Clip
• Type: Cylindrical, Rejection Fuse Clip
• Number of Phases: 1
• Mounting Type: Threaded
• Suitable For Use With: A60X, A60Z and A70QS-4 Series Form 101 Fuse
• Wire Size: 16 to 3/8 AWG
• Connection Type: Stud Terminal
