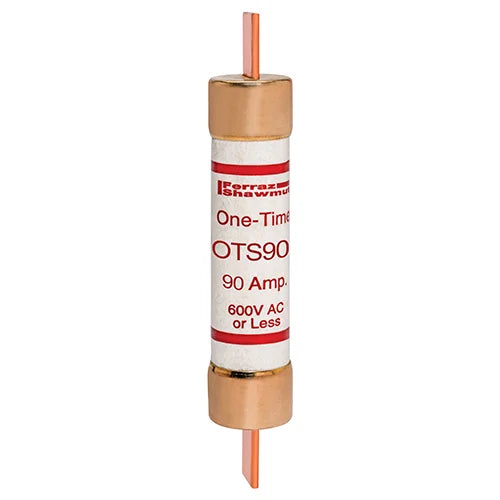

Mersen OTS90 Fuse Fast Acting 90A

Product Description

The MERSEN OTS90 is a fast-acting fuse designed for general purpose, low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. This Class K5 fuse safely interrupts short circuit currents up to 50,000 amperes. It has a voltage rating of 600V AC and 300V DC and amperage of 90A.

• One-Time OTS general purpose fuses provide low cost protection
• Safely interrupt available short circuit currents up to 50,000 amperes in all ratings
• For feeder and branch-circuits serving lighting, heating, and other non-motor loads

Product Highlights

The MERSEN OTS90 fuse provides reliable, fast-acting circuit protection for a variety of applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS90
• Country of Origin: Mexico

Technical Specifications

• Amps: 90A
• Item: Fuse
• Class: Class K5
• Speed: Fast Acting
• Length: 7.88"
• Diameter: 1.31"
• Mounting: Clip
• Fuse Amps: 90A
• Fuse Size: 7-7/8" x 1-5/16"
• Body Style: Blade
• Fuse Speed: Fast Acting
• Body Material: Polytube
• Interrupt Rating: 50 kAIC
• AC Voltage Rating: 600V
• DC Voltage Rating: 300V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 600V
• Item number: OTS90
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 90A Blade Amp-Trap®
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 90 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Type: Blade
• Product Diameter: 1.31 in
• Product Length: 7.88 in
• Body/Insulating Material: PolyTube
• Product Weight: 0.529 lb
