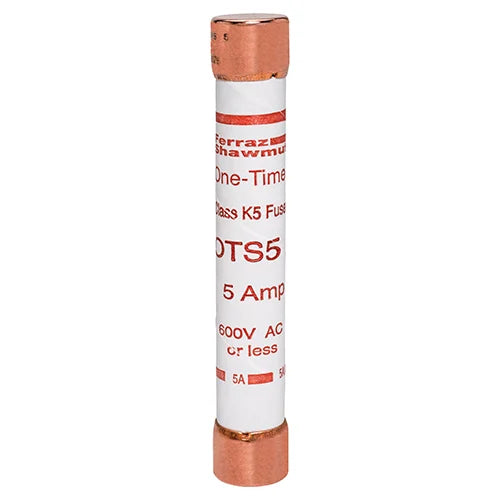

Mersen OTS5 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 5A Ferrule Amp-Trap

Product Description

The MERSEN OTS5 is a one-time OTS general purpose fuse that provides low-cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OTS fuses are not rejection fuses.

• Fast-Acting
• Interrupts short circuit currents up to 50,000 amperes
• Low cost protection

Product Highlights

The MERSEN OTS5 fuse is ideal for residential and commercial installations, providing reliable protection for non-inductive loads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS5

Technical Specifications

• Item number: OTS5
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 5A Ferrule Amp-Trap
• EAN/UPC Code: 782001700645
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 5 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 50,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC @ 300VDC
• Brand: Mersen
• Series: OTS
• Mpn: OTS5
• Upc: 782001700645
• Gtin: 782001700645
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: Y211115
• Breaking Capacity: 50 kA
• Current Rating: 5 A
• For Use With: Fuses
• Manufacturer Part Number: OTS5
• Speed: Fast Acting sec
• Unit of Measure: EA
• Voltage Rating: 600 V
• Voltage Rating - DC: 300 VDC
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Packaging: Bulk
• Part Status: Active
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 50kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 5A
• Size / Dimension: 0.811" Dia x 5.000" L (20.60mm x 127.00mm)
• Voltage Rating - AC: 600 VAC
