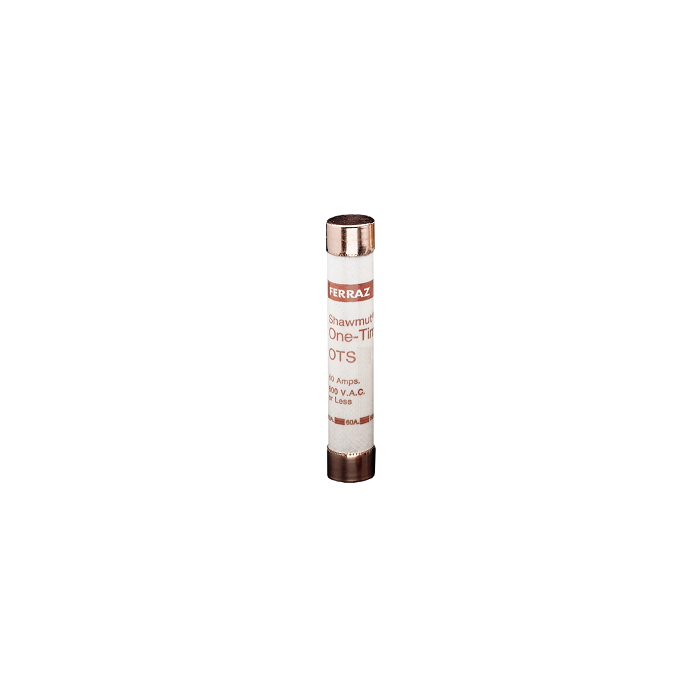

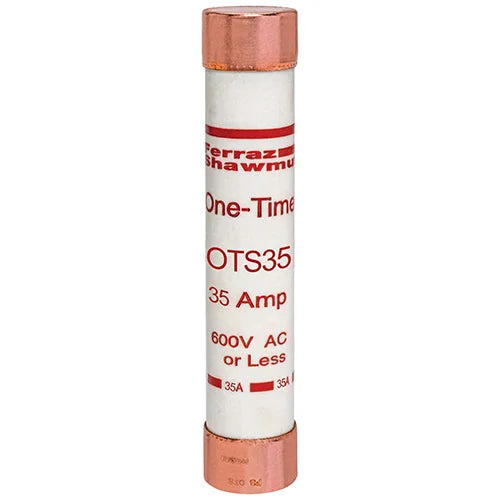

Mersen OTS35 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 35A Ferrule Amp-Trap

Product Description

The MERSEN OTS35 is a fuse designed for general purpose, one-time use, providing low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes. It is suitable for residential and small commercial installations.

• Low cost protection
• Fast-Acting
• UL Class K5 Fuse

Product Highlights

The MERSEN OTS35 fuse provides reliable, one-time overcurrent protection for various applications, featuring a fast-acting design and a 50kA interrupting rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS35

Technical Specifications

• Item number: OTS35
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 35A Ferrule Amp-Trap
• EAN/UPC Code: 782001700751
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 35 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 1.06 in
• Product Length: 5.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Amps: 35
• Voltage: 600V AC
• Fuse Type: One Time
• Rejection Type: Non Rejection
• Physical Size: 1 1/16" x 5 1/2"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 50,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC @ 300VDC
• Brand: Mersen
• Series: OTS
• Mpn: OTS35
• Upc: 782001700751
• Gtin: 782001700751
• Breaking Capacity: 50 kA
• Current Rating: 35 A
• Dimensions: 1.06 in H X 5.50 in L
• Manufacturer Part Number: OTS35
• Primary Type: Single Use Fuses
• Speed: Fast Acting sec
• Voltage Rating: 600 V
• Ampere: 35 A
• Voltage rating: 600 Vac, 300 Vdc
• Interrupt rating: 50 kA
• Shape: Cartridge Fuses
• Approvals: UL, CSA, RoHS
• Datasheet: https://specs.thefuseshop.com/Ferraz_Shawmut_Mersen_OT-OTN-OTS_Datasheet.pdf (Mersen OTS Datasheet)
• Item weight: 3.68 oz
