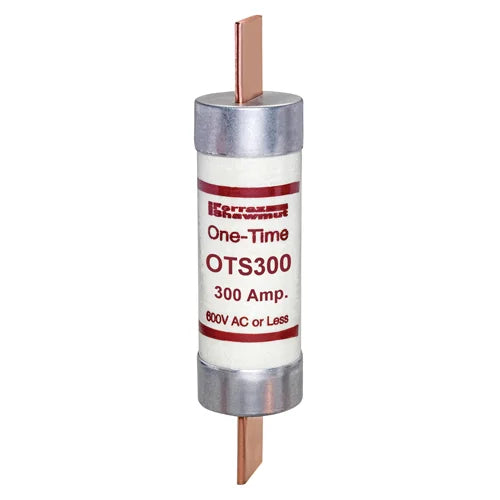

Mersen OTS300 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 300A Blade Amp-Trap

Product Description

The MERSEN OTS300 is a fuse designed for general purpose, providing low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. This fuse safely interrupts available short circuit currents up to 50,000 amperes. It is suitable for residential and small commercial installations.

• Low cost protection for feeder and branch-circuits
• Safely interrupt available short circuit currents up to 50,000 amperes in all ratings
• Not rejection fuses

Product Highlights

The MERSEN OTS300 fuse provides reliable, one-time overcurrent protection for various applications. It is a Class K5, fast-acting fuse with a blade terminal.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS300

Technical Specifications

• Item number: OTS300
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 300A Blade Amp-Trap
• EAN/UPC Code: 782001701024
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 300 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2.56 in
• Product Length: 11.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Category: Circuit Protection
• Voltage Rating - DC: 300 VDC
• Response Time: Fast Blow
• Series: OTS
• Applications: Electrical, Industrial
• Packaging: Bulk
• Part Status: Active
• Approval Agency: CSA, UL
• Breaking Capacity @ Rated Voltage: 50kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Blade Terminals
• Current Rating (Amps): 300A
• Size / Dimension: 2.598" Dia x 11.614" L (66.00mm x 295.00mm)
• Voltage Rating - AC: 600 VAC
• Interrupt Rating DC: 50 kA
• Rejection Type: Non Rejection
• Physical Size: 2 9/16" x 11 5/8"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 50,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC @ 300VDC
• Amps: 300
• Volts AC: 600
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Amperage Rating: 300
• Voltage: 600
• Catalog / Class: H
• SKU: OTS-300
