Mersen OTS30 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 30A Ferrule

Product Description

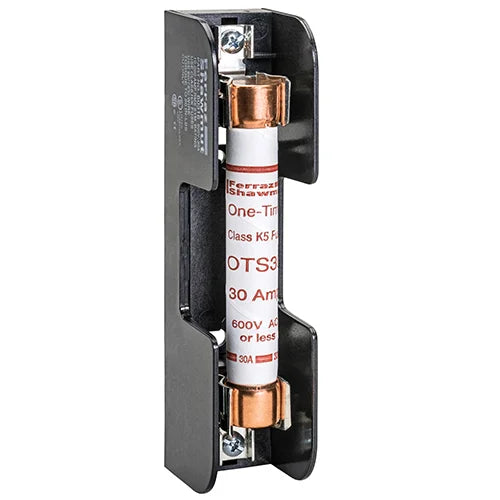

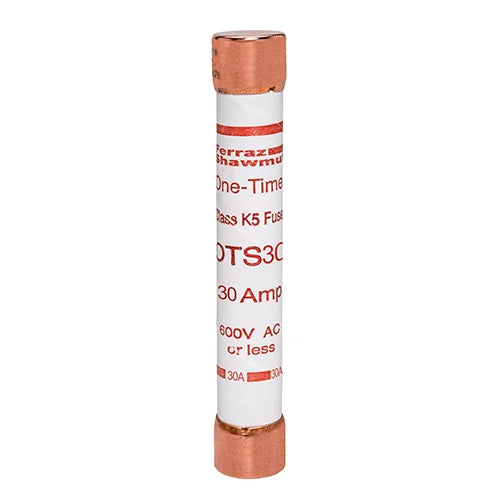

The Mersen OTS30 is a Class K5 fast-acting fuse designed for 600VAC and 300VDC systems, rated at 30A with a ferrule connection. This Amp-Trap fuse provides low-cost protection for feeder and branch circuits in residential and commercial installations, effectively interrupting short circuit currents up to 50kA. It is suitable for lighting, heating, and other non-motor loads.

• Easy to read imprint label for quick recognition and replacement
• Low cost for high protection value
• Interrupts short circuit currents up to 50,000 amperes

Product Highlights

Provides reliable, low-cost protection for various applications, ensuring safety and preventing damage from electrical faults.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS30
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: OTS30
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 30 A
• Application: Feeders Branch circuits Resistive heating Residential and small commercial installations
• Connection: Ferrule
• Interrupt Rating: 50 kA
• Mounting Type: Clip
• Special Features: Easy to read imprint label for quick recognition and replacement Low cost for high protection value
• Standard & Approvals: UL Listed to Standard 248-9 File E2137 CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design use OTN 15-60.) Self-certified for DC per UL248
• UPC: 782001700744
• GTIN: 00782001700744
• Item Type: Class K5
• Voltage Rating: 600 VAC, 300 VDC
• Type: Fast Acting
• Body Style: Cylindrical
• Series: OTS
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Product group: Low Voltage UL/CSA Fuses
• Frequency (Hz): 50/60 Hz
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• AC or DC: AC/DC
