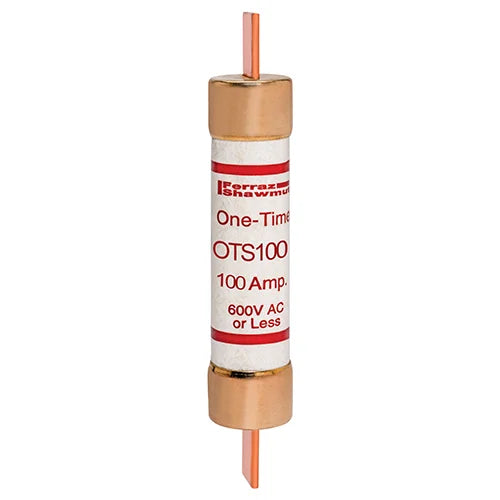

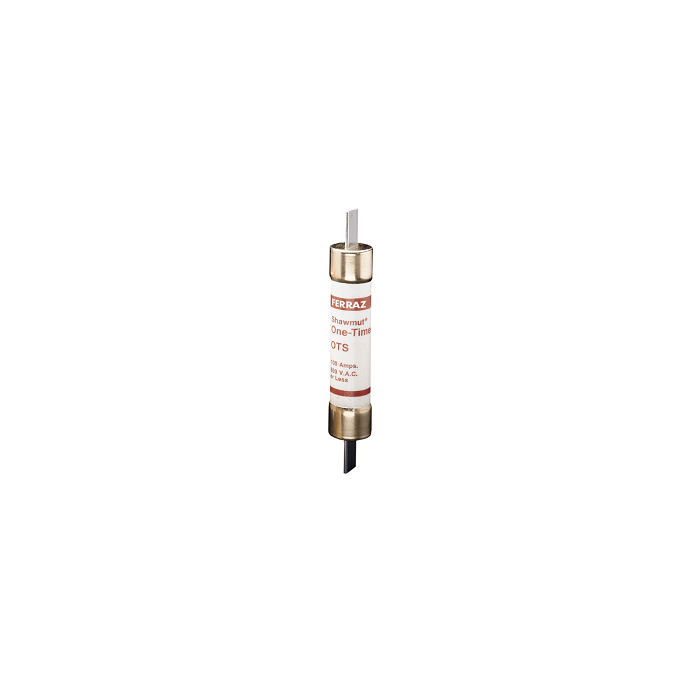

Mersen OTS100 Fuse OTS Class K5 600VAC 300VDC 100A Blade Amp-Trap

Brand: MERSEN
SKU: OTS100
Availability: In Stock

Ships same day if ordered by 12 pm
$117.00
$117.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN OTS100 is a One-Time OTS general purpose fuse that provides low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings.

  • Low cost protection
  • Interrupts available short circuit currents up to 50,000 amperes in all ratings
  • Not rejection fuses

Product Highlights

The MERSEN OTS100 fuse is ideal for residential and small commercial installations, protecting circuits serving non-inductive loads.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: OTS100
  • Country of Origin: United States
Technical Specifications
Item number
OTS100
Description
Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 100A Blade Amp-Trap
EAN/UPC Code
782001700867
Rated voltage AC UL
600 V
Rated voltage DC UL
300 V
Frequency (Hz)
50/60 Hz
Ampere Rating
100 A
ROHS Compliant
Yes
AC or DC
AC/DC
Fuse Class
Class K5
Speed/Characteristic
Fast-Acting
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
50 kA
Connection/Terminal Material
Tin-Plated Copper
Connection/Terminal Type
Blade
Product Diameter
1.31 in
Product Length
7.88 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
PolyTube
Amps
100
Voltage
600
AC Voltage Rating
600
DC Voltage Rating
300
Interrupting Rating
50,000 AIC @ 600VAC
DC Interrupting Rating
20,000 AIC @ 300VDC
Ampere
100 A
Voltage rating
600 Vac, 300 Vdc
Interrupt rating
50 kA
Speed
Fast-Acting
Class
Class K5
Shape
Cartridge Blade Fuses
Approvals
UL, CSA, RoHS
Substitute parts
Bussmann NOS, Littelfuse NLS
Breaking Capacity
50 kA
Current Rating
100 A
For Use With
Fuses
Manufacturer Part Number
OTS100
Primary Type
Single Use Fuses
Series
OTS Series
Unit of Measure
EA
Voltage Rating
600/300 VAC/VDC
Body Size
1-5/16 in Dia x 7-7/8 in L
Body Type
Cylindrical
Material
Paper
Rejection/Non-Rejection
Non-Rejection
Terminal Type
Blade
Type
Low Voltage
Brand
MERSEN
MPN
OTS100
UPC
Does not apply
Condition
New
