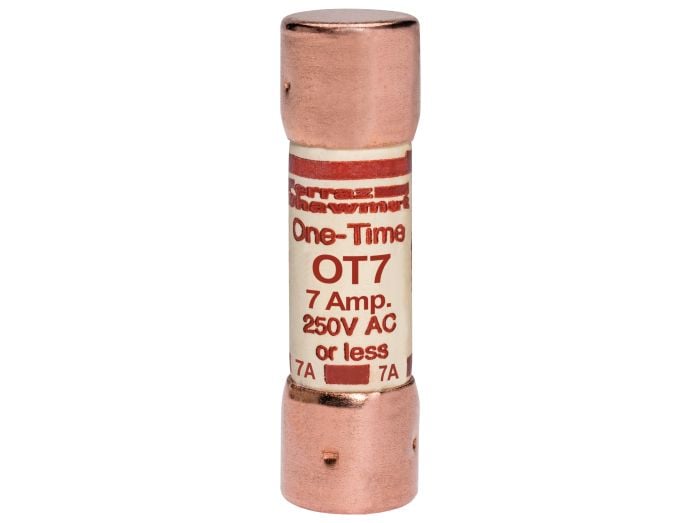

Mersen OT7 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 7A Ferrule Amp-Trap

Product Description

The MERSEN OT7 is a fuse OT - Class K5 - Fast-Acting designed to provide low-cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. This fuse safely interrupts available short-circuit currents up to 50,000 amperes in all ratings. It is suitable for general purpose applications.

• Low cost protection
• Interrupts short-circuit currents up to 50,000 amperes
• General purpose fuse

Product Highlights

The MERSEN OT7 fuse provides reliable, fast-acting protection for a variety of electrical circuits, preventing damage from short circuits and overloads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT7

Technical Specifications

• Item number: OT7
• Description: Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 7A Ferrule Amp-Trap
• EAN/UPC Code: 782001700065
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 7 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• Category: Circuit Protection
• Voltage Rating - DC: 250 VDC
• Response Time: Fast Blow
• Series: OT
• Applications: Electrical, Industrial
• Packaging: Bulk
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 50kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 7A
• Size / Dimension: 0.551" Dia x 2.008" L (14.00mm x 51.00mm)
• Voltage Rating - AC: 250 VAC
• Product Series: OT
• Family Series: Mersen Fuses, OT Series
• AC Voltage: 250 VAC
• DC Voltage: 250 VDC
• Characteristic: Fast Acting
• Interrupt Rating: 50 kA @ 250 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Approvals: CE, CSA, UL
• Net Weight: 0.04 lbs
• UNSPSC Code: 39120000
• Brand: Mersen
• Breaking Capacity: 50 kA
• Speed: Fast Acting sec
• Voltage Rating: 250 V
