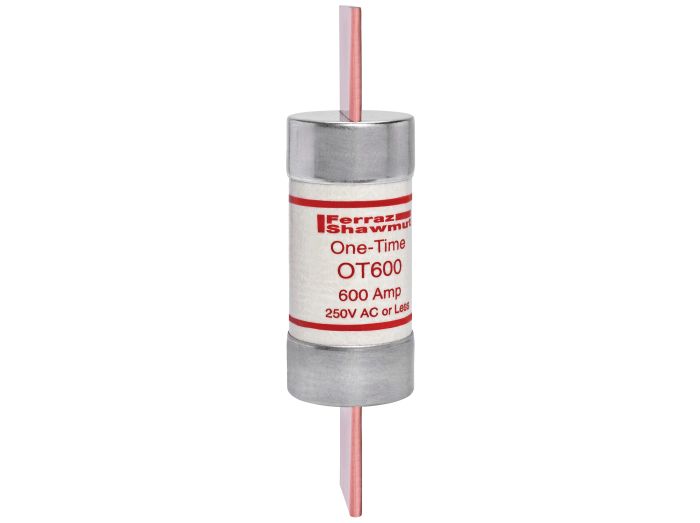

Mersen OT600 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 600A Blade Amp-Trap

Product Description

The MERSEN OT600 is a Fuse OT - Class K5 - Fast-Acting fuse designed for general purpose, providing low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. This fuse safely interrupts available short-circuit currents up to 50,000 amperes. It is suitable for AC/DC systems.

• Class K5 fuse with fast-acting characteristics.
• Rated for 250VAC and 250VDC operation.
• Interrupts short-circuit currents up to 50 kA.

Product Highlights

The MERSEN OT600 fuse provides reliable, fast-acting protection for a variety of general-purpose applications, with a high interrupting rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT600
• Country of Origin: United States

Technical Specifications

• Item number: OT600
• Description: Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 600A Blade Amp-Trap®
• EAN/UPC Code: 782001700577
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 600 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2.56 in
• Product Length: 10.38 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Brand: Mersen/Ferraz Shawmut
• Series: OT
• Mpn: OT600
• Upc: 782001700577
• Gtin: 782001700577
• Manufacturer Part Number: OT600
• Manufacturer: Mersen
• Product Series: OT
• Family Series: Mersen Fuses, OT Series
• Fuse Type: UL Class K5
• Current Rating: 600 A
• AC Voltage: 250 VAC
• DC Voltage: 250 VDC
• Class: K5
• Characteristic: Fast Acting
• Interrupt Rating: 50 kA @ 250 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Center Bladed
• Approvals: CE, CSA, UL
