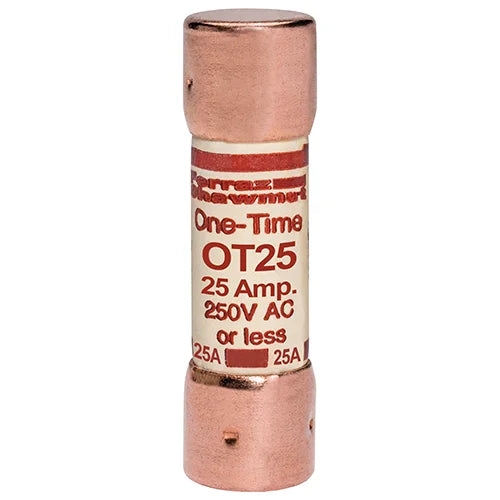

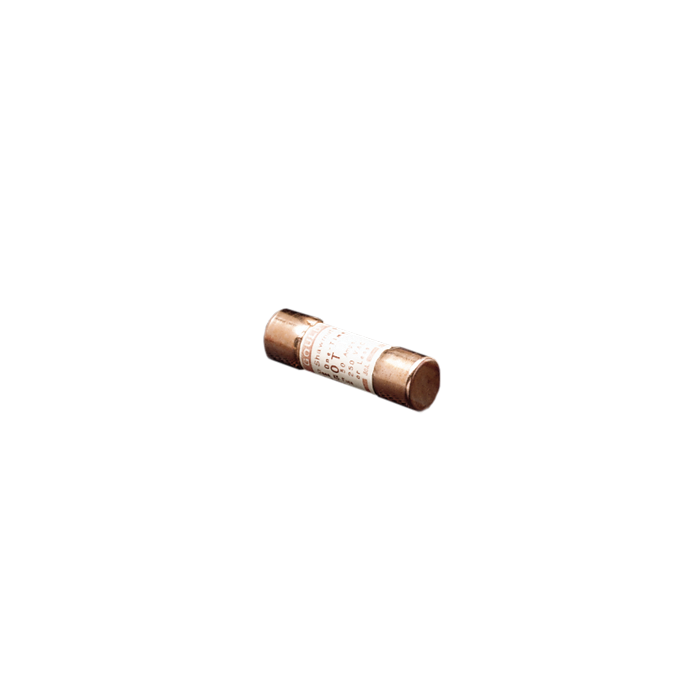

Mersen OT25 Fuse OT - Class K5 - Fast-Acting

Product Description

The MERSEN OT25 is a fuse designed for general purpose, providing low cost protection for feeder and branch-circuits. OT fuses safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. These fuses are suitable for lighting, heating, and other non-motor loads.

• Low cost protection
• Interrupts available short-circuit currents up to 50,000 amperes
• General purpose fuses

Product Highlights

The MERSEN OT25 fuse offers reliable, fast-acting protection for a variety of general purpose applications, with a Class K5 rating and a 50kA interrupting capacity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT25

Technical Specifications

• Item number: OT25
• Description: Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 25A Ferrule Amp-Trap
• EAN/UPC Code: 782001700133
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 25 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• Interrupting Rating: 50,000 AIC @ 250VAC
• DC Interrupting Rating: 20,000 AIC @ 250VDC
• Amperage: 25 Amps
• Voltage: 250 Volts AC / DC
• Fuse Type: One Time
• Rejection Type: Non Rejection Type
• Physical Size: 9/16" x 2"
• Brand: Mersen
• Breaking Capacity: 50 kA
• Current Rating: 25 A
• For Use With: Fuses
• Manufacturer Part Number: OT25
• Primary Type: Single Use Fuses
• Series: OT Series
• Speed: Fast Acting sec
• Voltage Rating: 250 V
• Part Number: OT25
• Manufacturer: Mersen / Ferraz Shawmut
• Family: OT Series
• Amp: 25
• Volt: 250
• Category: Fuses
• Type: OT
• AIC Ratings: 50kA@250V
