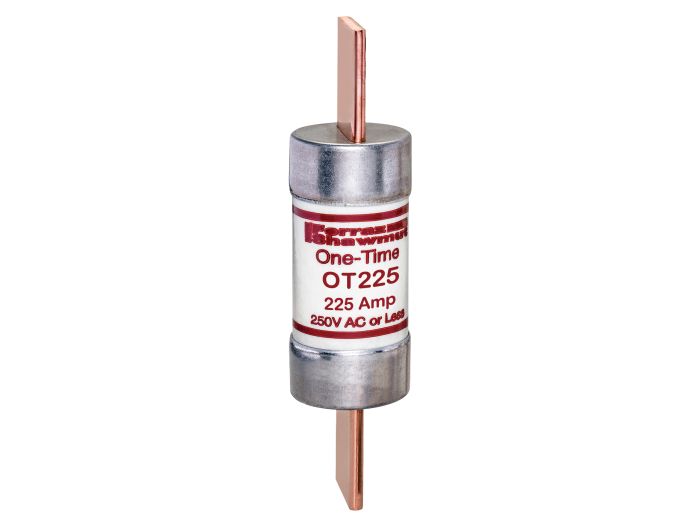

Mersen OT225 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 225A Blade Amp-Trap

Product Description

The Mersen OT225 is a one-time OT general purpose fuse that provides low-cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. This Class K5 fast-acting fuse safely interrupts available short-circuit currents up to 50,000 amperes in all ratings.

• Low cost protection
• Interrupt available short-circuit currents up to 50,000 amperes in all ratings
• Not rejection fuses

Product Highlights

The Mersen OT225 fuse is ideal for protecting lighting, heating, and other non-motor loads. It is a Class K5 fast-acting fuse with a 225A current rating and a 250VAC/DC voltage rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT225

Technical Specifications

• Item number: OT225
• Description: Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 225A Blade Amp-Trap
• EAN/UPC Code: 782001700416
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 225 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2.06 in
• Product Length: 8.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Product Weight: 1.45 lb
• Brand: Mersen
• MPN: OT225
• UPC Code: 0782001700416
• Manufacturer: Mersen
• Breaking Capacity: 50 kA
• Current Rating: 225 A
• Unit of Measure: EA
• AC Voltage: 250 VAC
• DC Voltage: 250 VDC
• Class: K5
• Characteristic: Fast Acting
• Interrupt Rating: 50 kA @ 250 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Center Bladed
• Approvals: CE, CSA, UL
• Net Weight: 1.45 lbs
• Gross Weight: 1.45 lbs
• Volt: 250
• AIC Ratings: 50kA@250V
• Family: OT Series
• Type: OT
• Amp: 225
