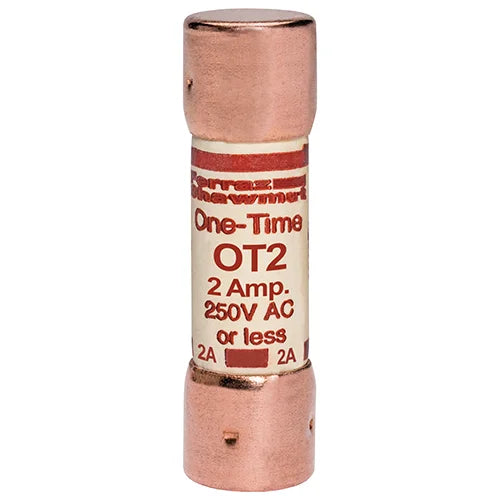

Mersen OT2 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 2A Ferrule Amp-Trap

Product Description

The MERSEN OT2 is a fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 2A Ferrule Amp-Trap. It provides low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings.

• One-Time OT and OTN general purpose fuses provide low cost protection
• Safely interrupt available short-circuit currents up to 50,000 amperes in all ratings
• Not rejection fuses

Product Highlights

This fuse is ideal for residential and small commercial installations, offering reliable protection for circuits serving non-inductive loads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT2

Technical Specifications

• Item number: OT2
• Description: Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 2A Ferrule Amp-Trap
• EAN/UPC Code: 782001700010
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 2 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• Interrupting Rating: 50,000 AIC @ 250VAC
• DC Interrupting Rating: 20,000 AIC @ 250VDC
• Brand: Mersen/Ferraz Shawmut
• Series: OT
• Mpn: OT2
• Upc: 782001700010
• Gtin: 782001700010
