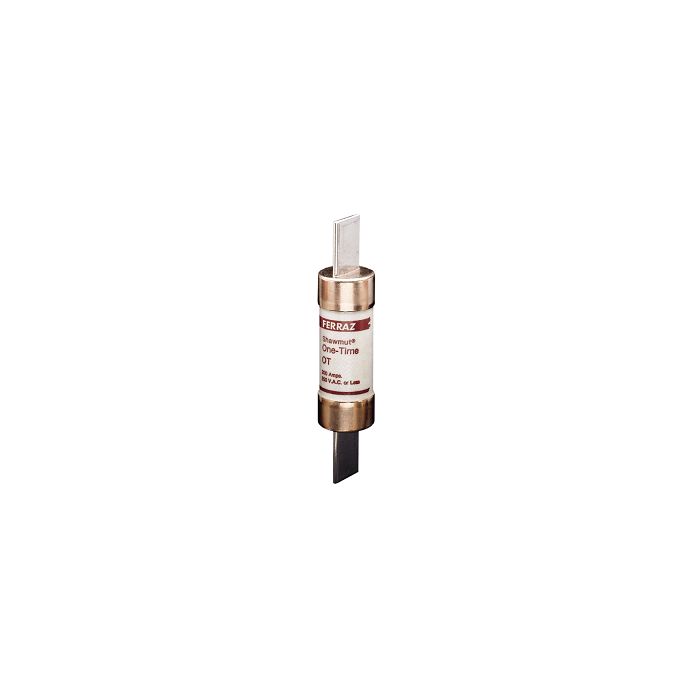

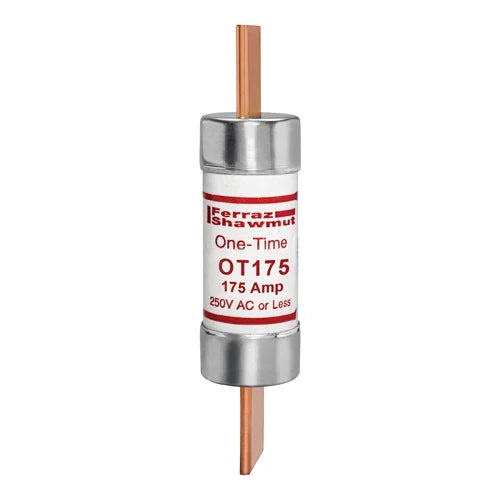

Mersen OT175 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 175A Blade Amp-Trap

Product Description

The MERSEN OT175 is a fuse OT, Class K5, fast-acting fuse with a 250VAC and 250VDC rating and 175A blade Amp-Trap. These general-purpose fuses provide low-cost protection for feeder and branch circuits serving lighting, heating, and other non-motor loads. OT fuses safely interrupt available short-circuit currents up to 50,000 amperes in all ratings.

• Low cost protection
• Interrupts available short-circuit currents up to 50,000 amperes
• General purpose fuses for feeder and branch-circuits

Product Highlights

The MERSEN OT175 fuse provides reliable, low-cost protection for various applications, with a fast-acting design and high interrupting capacity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT175

Technical Specifications

• Item number: OT175
• Description: Industrial & Electrical Fuses 250V 175A 7 1/8x1 9/10 K5
• EAN/UPC Code: 782001700355
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 175 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.56 in
• Product Length: 7.13 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• Interrupting Rating: 50,000 AIC @ 250VAC
• DC Interrupting Rating: 20,000 AIC @ 250VDC
• Amperage: 175
• Mfr. #: OT175
• Mfr.: Mersen
