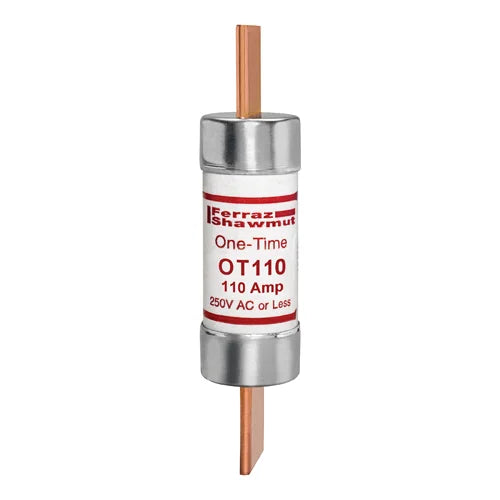

Mersen OT110 Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 110A Blade Amp-Trap

Product Description

The MERSEN OT110 is a Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 110A Blade Amp-Trap. One-Time OT general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings.

• Low cost protection
• Interrupts available short-circuit currents up to 50,000 amperes
• Fast-Acting

Product Highlights

The MERSEN OT series fuses provide reliable, one-time general purpose protection for various non-motor loads with a fast-acting response.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT110

Technical Specifications

• Item number: OT110
• Description: Industrial & Electrical Fuses 250V 110A 7 1/8x1 9/10 K5
• EAN/UPC Code: 782001700287
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 110 A
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.56 in
• Product Length: 7.13 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Fuse Response Time: One Time Use
• Fuse Protection Type: Non Inductive Loads
• Manufacturer: Mersen
• Fuse Size: 1-9/16" X 7-1/8"
• Fuse Amperage Rating: 110 Amp
• Component: Fuse
• Fuse Type (UL): Class K5
• Fuse Voltage Rating: 250 Volt
• Mfr. #: OT110
• Mfr.: Mersen
• Voltage rating: 250 Vac, 250 Vdc
• Interrupt rating: 50 kA
• Speed: Fast-Acting
• Class: Class K5
• Shape: Cartridge Blade Fuses
• Approvals: UL, CSA, RoHS
• Substitute parts: Bussmann NON, Littelfuse NLN
• Dimensions: 1.56" Dia x 7.13" L (39.62x181.1mm)
• Item weight: 12.24 oz
