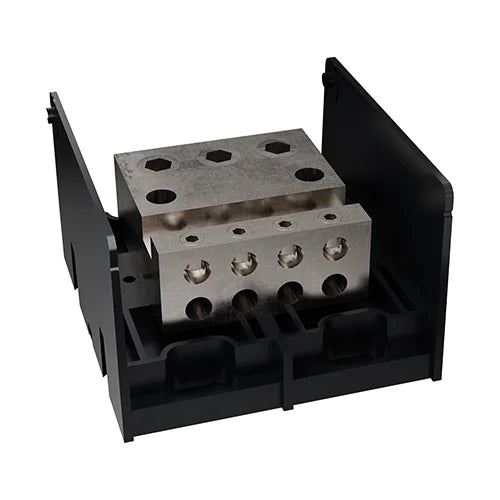

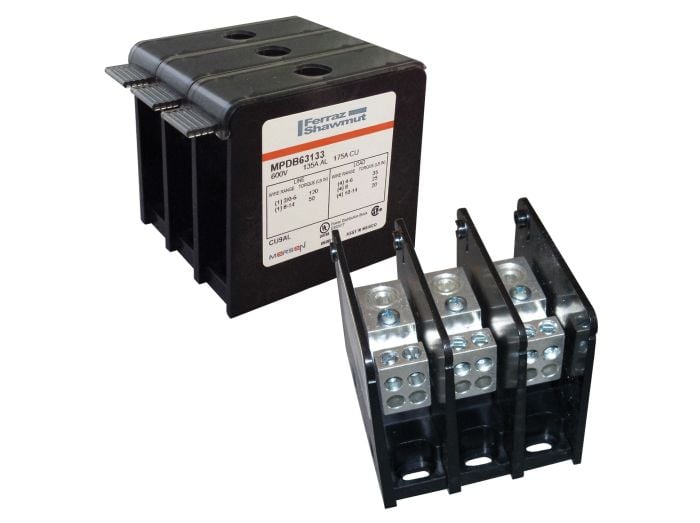

Mersen mpdb900061 mpdb series power distribution block 1-pole

Product Description

The MERSEN MPDB900061 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. This open-style, 1-pole block meets requirements for fixed junction tap-off points. It is UL and CSA approved, meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MPDB series power distribution block features tin-plated aluminum connectors and a glass-filled polycarbonate body, suitable for various electrical applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB900061

Technical Specifications

• Item number: MPDB900061
• Description: Open-Style PDB UL 1953 1000V 930A Tin-plated Aluminum - 1140A 1-Pole 3 - 8 openings; 500-#4 --- 2/0-#14 Box to Box
• EAN/UPC Code: 782001456238
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 930 A
• Ampere Rating (CU): 1140 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Standalone): 10 kA
• Number of Poles: 1
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 3
• Number of Openings per Pole (Secondary): 8
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 13/16-16 x 1.06
• Hex/Screw Size & Type (Secondary): 7/16-20 x .55
• Hole Diameter (Primary): 0.88 in
• Hole Diameter (Secondary): 0.44 in
• Torque Rating (Primary): 500-#4 500
• Torque Rating (Secondary): 2/0-#6 120; #8-#14 50
• Wire Range (Primary): 500-#4
• Wire Range (Secondary): 2/0-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 5.31 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 3.7 lb
• Manufacturer: Mersen
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• AC Voltage: 1,000 VAC
• Current Rating: 1,140 A
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 500 kcmil - 4 AWG
• Output Wire Range: 2/0-12 AWG
• Cover Included: No
• Comments: Aluminum Wire 930 Amps
• Amperage Rating: 1140 A
• Material: Polycarbonate
• Primary Connections/Pole: 3
• Secondary Connection/Pole: 8
• Series: MPDB
• Short Circuit Current Rating: 100 kA
• Type: Double Wide Large Open Style
• Voltage Rating: 600 VAC
• Wire Size: 4 AWG to 500 kcmil
