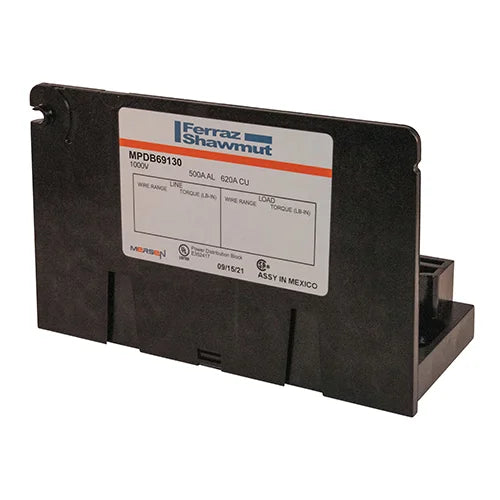

Mersen MPDB69130 MPDB Series UL 1953 Open-Style Power Distribution Blocks

Product Description

The MERSEN MPDB69130 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This open-style PDB is UL and CSA approved and meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MPDB series is offered in three size categories: miniature, intermediate, and large, in both aluminum and copper.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69130

Technical Specifications

• Item number: MPDB69130
• Description: Open-Style PDB UL 1953 1000V 500A Tin-plated Aluminum - 620A Adder 2 - 6 openings; 350-#6 --- 2/0-#14 Box to Box
• EAN/UPC Code: 782001451165
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 500 A
• Ampere Rating (CU): 620 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 800A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 600A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 800A Fuse
• Number of Poles: Adder
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 6
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 11/16-16 x .88
• Hex/Screw Size & Type (Secondary): 7/16-20 x .55
• Hole Diameter (Primary): 0.75 in
• Hole Diameter (Secondary): 0.44 in
• Torque Rating (Primary): 350-#6 275
• Torque Rating (Secondary): 2/0-#6 120; #8-#14 50
• Wire Range (Primary): 350-#6
• Wire Range (Secondary): 2/0-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 2.58 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 1.7 lb
• UNSPSC Code: 39120000
• Brand: Mersen
• Current Rating: 620 A
• Manufacturer Part Number: MPDB69130
• Primary Type: Power Distribution Block
• Series: MPDB Series
• Voltage Rating: 1000 V
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Packaging: Bulk
• Line Side Wire/Stud Size: 350MCM (kcmil) - #6CU/AL
• Part Status: Active
• Load Side Wire/Stud Size: 2/0 - #14CU/AL
• Type: Power Distribution Block
• Voltage - Rated: 1000 V
• Current Rating (Amps): 620 A
• Line Side Connections Per Pole: 2
• Load Side Connections Per Pole: 6
• Material: Polycarbonate
• Wire Size: 6 AWG to 350 kcmil
• Application: Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
• Dimensions: 2.58 in W x 5.7 in D x 3.55 in H
