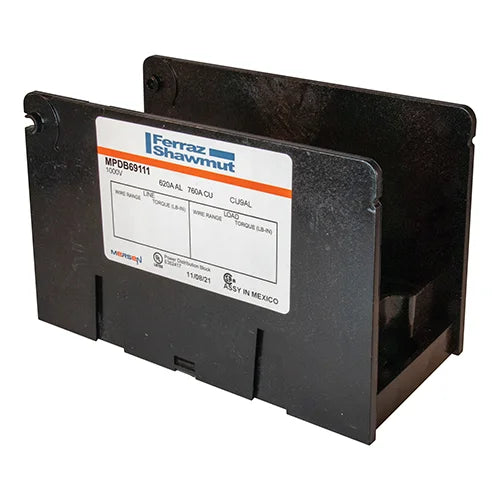

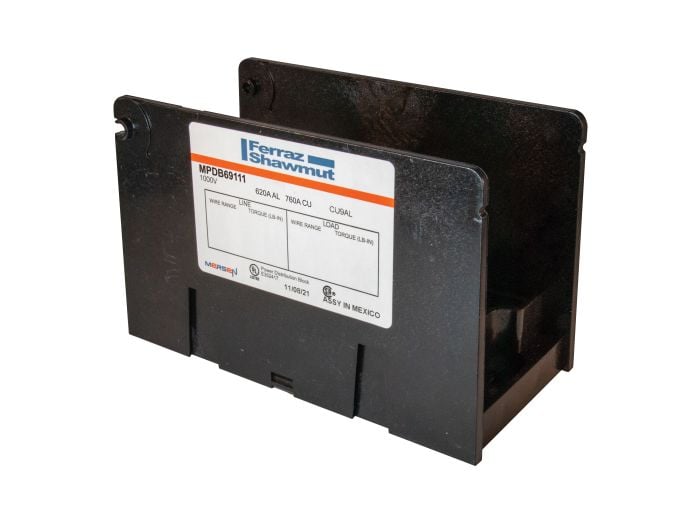

Mersen MPDB69111 MPDB Series UL 1953 Open-Style Power Distribution Blocks

Product Description

The MERSEN MPDB69111 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. It is UL and CSA approved while meeting spacing requirements for feeder and branch circuits. The MPDB series is offered in miniature, intermediate, and large sizes, in both aluminum and copper.

• Safe and easy method of splicing cables
• Splits primary power into secondary circuits
• Meets spacing requirements for feeder and branch circuits

Product Highlights

The MERSEN MPDB69111 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69111

Technical Specifications

• Item number: MPDB69111
• Description: Open-Style PDB UL 1953 1000V 620A Tin-plated Aluminum - 760A 1-Pole 2 - 12 openings; 500-#4 --- #4-#14 Box to Box
• EAN/UPC Code: 782001452506
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 620 A
• Ampere Rating (CU): 760 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 800A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 600A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 800A Fuse
• Number of Poles: 1
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 12
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 13/16-16 x 1.06
• Hex/Screw Size & Type (Secondary): 5/16-24 x .38
• Hole Diameter (Primary): 0.88 in
• Hole Diameter (Secondary): 0.27 in
• Torque Rating (Primary): 500-#4 500
• Torque Rating (Secondary): #4-#8 40; #10-#14 35
• Wire Range (Primary): 500-#4
• Wire Range (Secondary): #4-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 2.73 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 1.9 lb
• Voltage Rating: 1000 V
• Current Rating: 760 A
• Series: MPDB Series
• UNSPSC Code: 39120000
• Brand: Mersen
• Manufacturer Part Number: MPDB69111
• Primary Type: Power Distribution Block
• Manufacturer: Mersen
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• AC Voltage: 600 VAC
• Number of Inputs per Pole: 2
• Number of Outputs per Pole: 12
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 500 kcmil-4 AWG
• Output Wire Range: 4-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Approvals: CSA, UL
• Net Weight: 1.14 lbs
• Gross Weight: 1.9 lbs
• Material: Polycarbonate
• Wire Size: 4 AWG to 500 kcmil
• Application: Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off Points
• Type: Large Open Style
• Amperage Rating: 760
