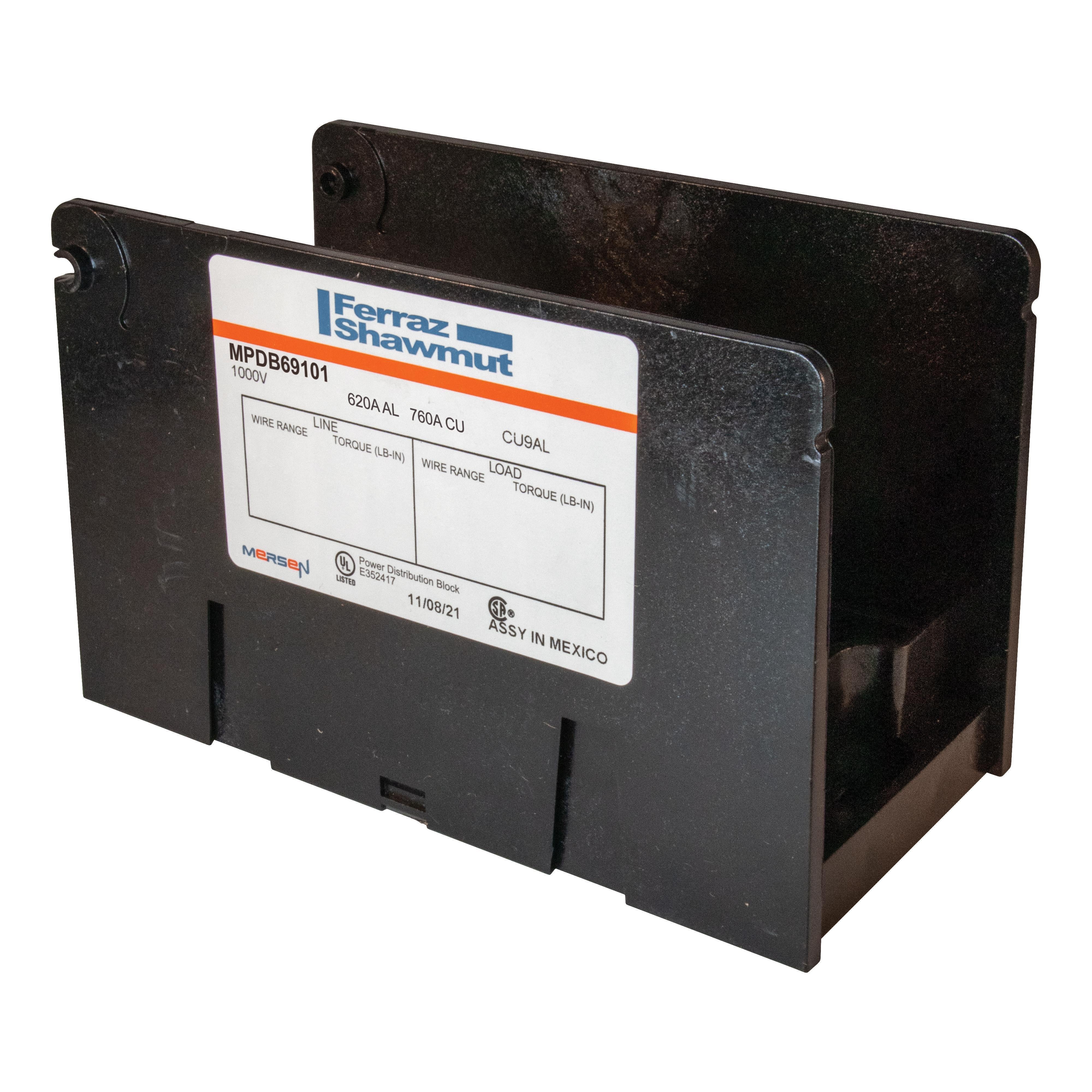

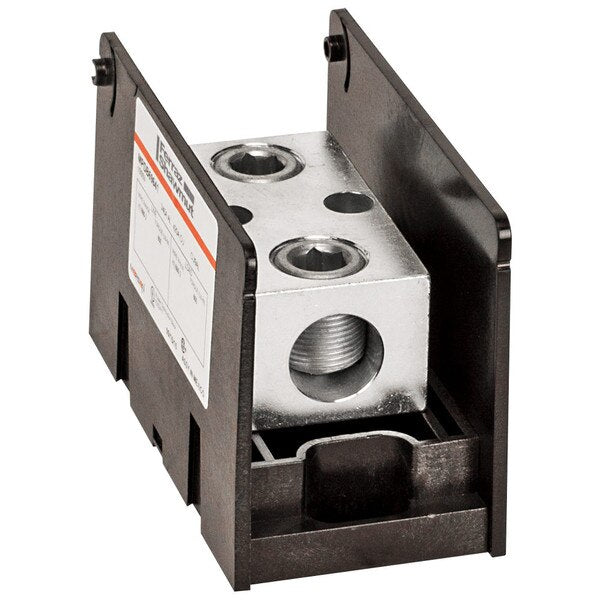

Mersen mpdb69101 Power Distribution Block 760A replacement 69101

Brand: MERSEN
SKU: MPDB69101
Availability: In Stock

Ships same day if ordered by 12 pm
$352.71
$352.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN MPDB69101 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points and meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. It is UL and CSA approved.

  • Safe and easy method of splicing cables
  • Splits primary power into secondary circuits
  • Meets UL508A and National Electrical Code requirements

Product Highlights

The MERSEN MPDB69101 is ideal for cable splicing, splitting primary power into secondary circuits, and fixed junction and tap-off point applications.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: MPDB69101
  • Country of Origin: Mexico
Technical Specifications
Item number
MPDB69101
Description
Open-Style PDB UL 1953 1000V 620A Tin-plated Aluminum - 760A 1-Pole 2 - 6 openings; 500-#4 --- 2/0-#14 Box to Box
EAN/UPC Code
782001452469
Rated voltage AC UL
1000 V
Rated voltage DC UL
1000 V
Frequency (Hz)
50/60 Hz
Ampere Rating (AL)
620 A
Ampere Rating (CU)
760 A
ROHS Compliant
Yes
AC or DC
AC/DC
Short Circuit Rating (Class CC)
100 kA with 30A Fuse
Short Circuit Rating (Class G)
100 kA with 60A Fuse
Short Circuit Rating (Class J)
100 kA with 600A Fuse
Short Circuit Rating (Class L)
100 kA with 800A Fuse
Short Circuit Rating (Class RK1)
100 kA with 600A Fuse
Short Circuit Rating (Class RK5)
100 kA with 600A Fuse
Short Circuit Rating (Standalone)
10 kA
Short Circuit Rating (Class T)
100 kA with 800A Fuse
Number of Poles
1
Connector Material
Tin-plated Aluminum
Number of Openings per Pole (Primary)
2
Number of Openings per Pole (Secondary)
6
Connector Type (Primary)
Box
Connector Type (Secondary)
Box
Hex/Screw Size & Type (Primary)
13/16-16 x 1.06
Hex/Screw Size & Type (Secondary)
7/16-20 x .55
Hole Diameter (Primary)
0.88 in
Hole Diameter (Secondary)
0.44 in
Torque Rating (Primary)
500-#4 500
Torque Rating (Secondary)
2/0-#6 120; #8-#14 50
Wire Range (Primary)
500-#4
Wire Range (Secondary)
2/0-#14
Installation Mounting
Direct Screw Mount
Product Width
2.73 in
Product Length
5.7 in
Product Height
3.55 in
Product group
Power Distribution Blocks
Body/Insulating Material
Glass Filled Polycarbonate
UNSPSC Code
39120000
Brand
Mersen
Manufacturer Part Number
MPDB69101
Unit of Measure
EA
Category
Connectors, Interconnects
Terminal Blocks
Power Distribution
Load Side Connections Per Pole
6
Manufacturer
Mersen USA Newburyport-MA L.L.C.
Line Side Connection Type
Screw Connection
Series
MPDB
Load Side Connection Type
Screw Connection
Line Side Wire/Stud Size
500MCM (kcmil) - #4CU/AL
Part Status
Active
Load Side Wire/Stud Size
2/0 - #14CU/AL
Type
Power Distribution Block
Voltage - Rated
1000 V
Current Rating (Amps)
760 A
Line Side Connections Per Pole
2
Amperage Rating
760 A
Short Circuit Current Rating (kA)
100 kA
Wire Size
4 AWG to 500 kcmil
Country of origin
MX
Material
Polycarbonate
Manufacturer Name
MERSEN
UNSPSC
39121410
AC Voltage
600 VAC
Number of Inputs per Pole
2
Number of Outputs per Pole
6
Electrical Connection
Box Lug/Box Lug
Mounting
Panel Mount
Line Side Wire Range
500 kcmil-4 AWG
Output Wire Range
2/0-14 AWG
Cover Included
No
Composition
Glass-Fill Polycarbonate
Color
Black
Approvals
CSA, UL
Net Weight
1.9 lbs
Gross Weight
1.9 lbs
