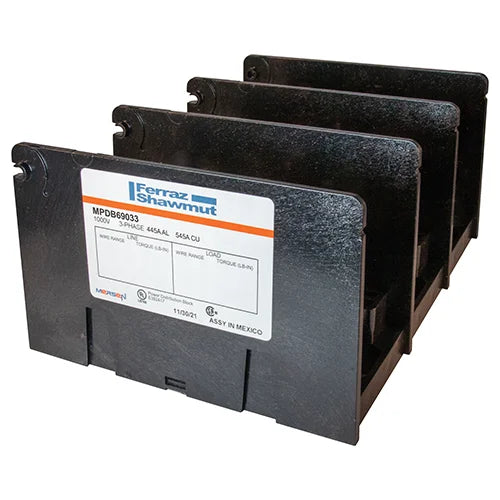

Mersen MPDB69033 Mpdb Series Ul 1953 Open-Style Power Distribution Blocks

Product Description

The MERSEN MPDB69033 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This open-style PDB is UL and CSA approved and meets spacing requirements for feeder and branch circuits. It is suitable for use with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MPDB series is offered in miniature, intermediate, and large sizes, in both aluminum and copper. Specialty blocks are available allowing for up to 7 primary inputs.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69033

Technical Specifications

• Item number: MPDB69033
• Description: Open-Style PDB UL 1953 1000V 445A Tin-plated Aluminum - 545A 3-Pole 1 - 6 openings; 1000-250 --- 2/0-#14 Box to Box
• EAN/UPC Code: 782001455422
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 445 A
• Ampere Rating (CU): 545 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 200A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 600A Fuse
• Number of Poles: 3-Pole
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 6
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 1 1/8-12 x 1.25
• Hex/Screw Size & Type (Secondary): 7/16-20 x .55
• Hole Diameter (Primary): 1.22 in
• Hole Diameter (Secondary): 0.44 in
• Torque Rating (Primary): 1000-250 780
• Torque Rating (Secondary): 2/0-#6 120; #8-#14 50
• Wire Range (Primary): 1000-250
• Wire Range (Secondary): 2/0-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 7.89 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 5.4 lb
