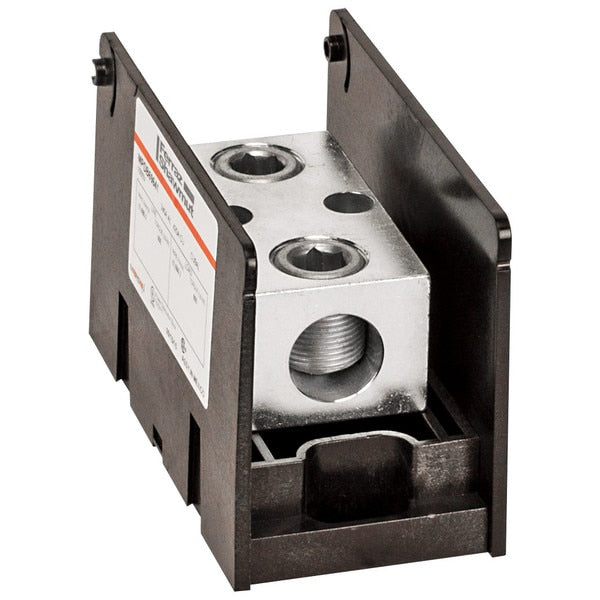

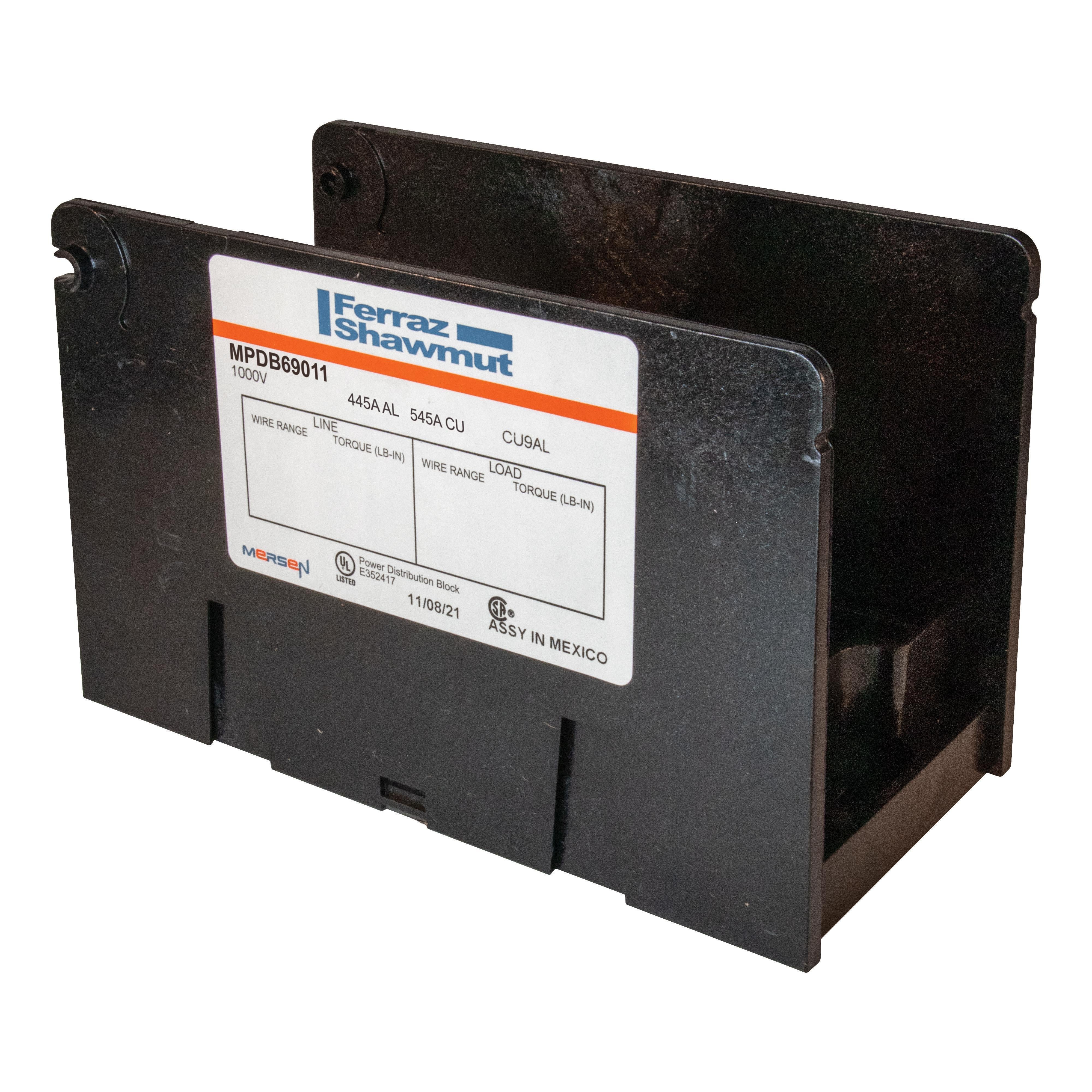

Mersen mpdb69011 mpdb series power distribution block 545A

Product Description

The MERSEN MPDB69011 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. It is UL and CSA approved.

• Tin-plated aluminum connector material
• Direct screw mount installation
• Suitable for cable splicing, splitting primary power into secondary circuits, fixed junction and tap-off point applications

Product Highlights

The MERSEN MPDB69011 power distribution block is ideal for splicing cables and splitting primary power into secondary circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69011
• Country of Origin: Mexico

Technical Specifications

• Item number: MPDB69011
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 445 A
• Ampere Rating (CU): 545 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 200A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 600A Fuse
• Number of Poles: 1
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 2
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 1 1/8-12 x 1.25
• Hex/Screw Size & Type (Secondary): 13/16-16 x 1.06
• Hole Diameter (Primary): 1.22 in
• Hole Diameter (Secondary): 0.88 in
• Torque Rating (Primary): 1000-250 780
• Torque Rating (Secondary): 500-#4 500
• Wire Range (Primary): 1000-250
• Wire Range (Secondary): 500-#4
• Installation Mounting: Direct Screw Mount
• Product Width: 2.73 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 1.9 lb
• UNSPSC Code: 39120000
• Brand: Mersen
• Manufacturer Part Number: MPDB69011
• Amperage Rating: 545 A
• Series: MPDB
• Short Circuit Current Rating (kA): 100 kA
• Type: Large Open Style
• Wire Size: 250 to 1000 kcmil
• Material: Polycarbonate
• Manufacturer Name: MERSEN
• UNSPSC: 39121410
• Voltage Rating: 600
• Application: Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
• Model: MPDB69011
• Category: Business & Industrial
• Rated Voltage AC UL: 1000 V
• Rated Voltage DC UL: 1000 V
