Mersen MPDB68141 MPDB Series UL 1953 1000V - 620A CU Large 1-Pole

Product Description

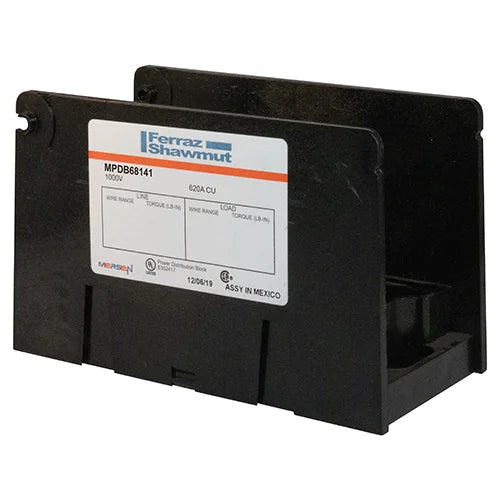

The Mersen MPDB68141 is an open-style power distribution block (PDB) from the MPDB series, UL 1953 listed, and rated for 1000V. Constructed with tin-plated copper, it supports up to 620A and features a 1-pole configuration with 2 to 12 openings, designed for box-to-box connections. It is suitable for splicing cables, splitting primary power, and fixed junction tap-off points.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

This Mersen power distribution block provides a safe and easy method for splicing cables and splitting primary power into secondary circuits.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: MPDB68141
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MPDB68141
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 620 A
• Application: Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
• Connection: Box To Box
• Material: Tin-plated Copper
• Mounting: Screw
• Special Features: Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block.
• Standard: UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
• UPC: 782001455231
• GTIN: 00782001455231
• Item Type: Open-Style Power Distribution Blocks
• Voltage Rating: 1000 V
• Item number: MPDB68141
• Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 620A 1-Pole 2 - 12 openings; 350-#6 --- #4-#14 Box to Box
• EAN/UPC Code: 782001455231
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (CU): 620 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 800A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 600A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 800A Fuse
• Number of Poles: 1-Pole
• Connector Material: Tin-plated Copper
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 12
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 11/16-16 x .88
• Hex/Screw Size & Type (Secondary): 5/16-24 x .38
• Hole Diameter (Primary): 0.75 in
• Hole Diameter (Secondary): 0.27 in
• Torque Rating (Primary): 350-#6 275
• Torque Rating (Secondary): #4-#6 45; #8 40; #10-#14 35
• Wire Range (Primary): 350-#6
• Wire Range (Secondary): #4-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 2.73 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 3.7 lb
• Primary brand: Mersen / Ferraz Shawmut
• Manufacturer product status: Commercialized
• Manufacturer description: PWR DIS BLK CU LG 620A 1P 12
