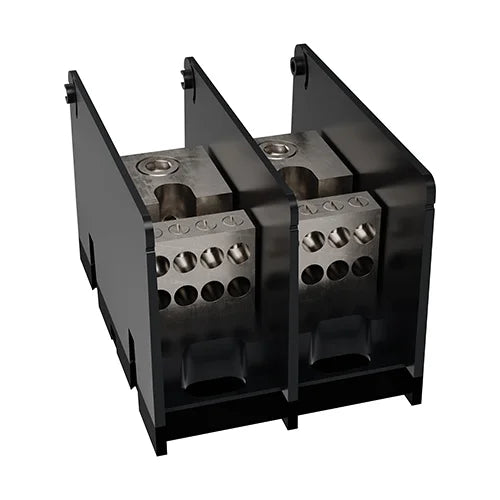

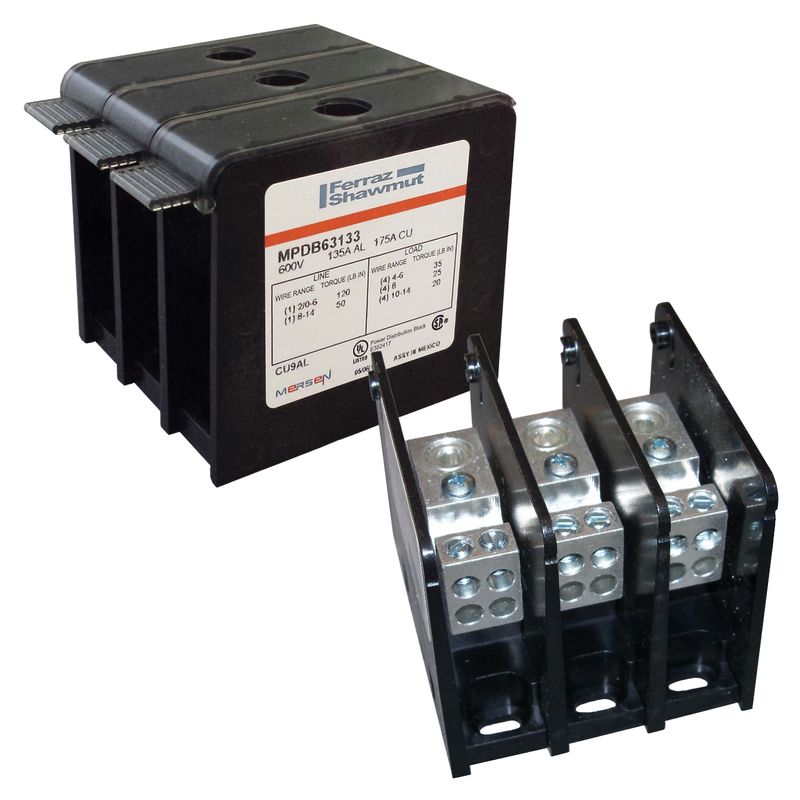

Mersen MPDB67632 mpdb series ul 1953 open-style power distribution blocks

Product Description

The MERSEN MPDB67632 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This open-style PDB is UL and CSA approved and meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MERSEN MPDB67632 power distribution block is UL and CSA approved and meets spacing requirements for feeder and branch circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67632
• Country of Origin: Mexico

Technical Specifications

• Item number: MPDB67632
• Description: Open-Style PDB UL 1953 1000V 250A Tin-plated Aluminum - 310A 2-Pole 1 - 8 openings; 350-#6 --- #2-#14 Box to Box
• EAN/UPC Code: 782001452797
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 250 A
• Ampere Rating (CU): 310 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 400A Fuse
• Short Circuit Rating (Class L): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 100A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 400A Fuse
• Number of Poles: 2 Pole
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 8
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 11/16-16 x .88
• Hex/Screw Size & Type (Secondary): 5/16-24 x .38
• Hole Diameter (Primary): 0.75 in
• Hole Diameter (Secondary): 0.31 in
• Torque Rating (Primary): 350-#6 275
• Torque Rating (Secondary): #2-#3 50; #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 350-#6
• Wire Range (Secondary): #2-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 3.57 in
• Product Length: 3.08 in
• Product Height: 3.25 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 1.1 lb
• Terminal Blocks: Power Distribution
• Load Side Connections Per Pole: 8
• Line Side Connection Type: Screw Connection
• Series: MPDB
• Load Side Connection Type: Screw Connection
• Packaging: Bulk
• Line Side Wire/Stud Size: 350MCM (kcmil) - #6CU/AL
• Part Status: Active
• Load Side Wire/Stud Size: 2 - #14CU/AL
• Type: Power Distribution Block
• Voltage - Rated: 1000 V
• Current Rating (Amps): 310 A
• Line Side Connections Per Pole: 1
• Amperage: 250 Amp
• Applications: Cable splicing Splitting primary power into secondary circuits Fixed junction tap-off points
• Connection Type: Box
• Frequency: 50/60 Hz
• Insulation Material: GFPC
• Max Operating Temperature: 80 degrees C
• Mounting Type: Direct Screw Mount
• Rated Voltage AC: 1000 V
• Rated Voltage DC: 1000 V
• Short Circuit Current Ratng: 10000 A
• TC Connection: Box To Box
• Voltage: 1000 Volt
• Brand: Ferraz Shawmut Canada, Inc.
• 12-Digit UPC: 782001452797
• GTiN: 30782001452798
• Product UPC: 78200145279
• Height: 3-1/4 Inch
• Pole Opening: 1,8
• Width: 3.57 in
• Certifications: UL Listed to subject 1953, File E352417 unless noted otherwise
• CSA Certified Class: 6228 01
• UNSPSC: 39121453
• Material: Polycarbonate
• Wire Size: 6 AWG to 350 kcmil
• Application: Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
• Voltage Rating: 1000
• Amperage Rating: 310
