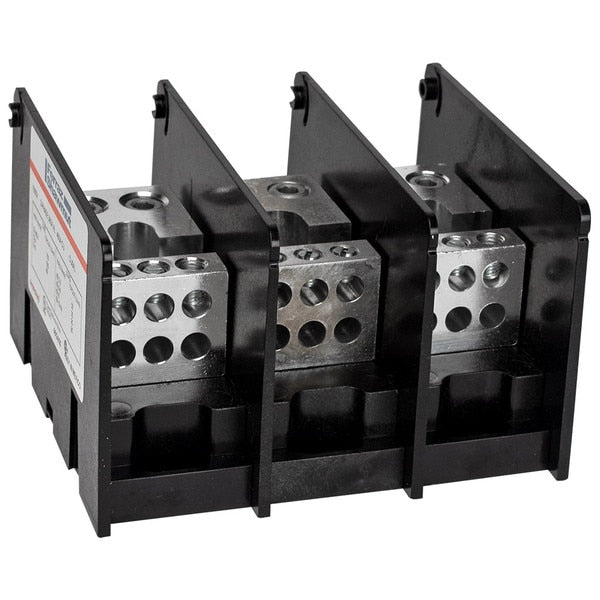

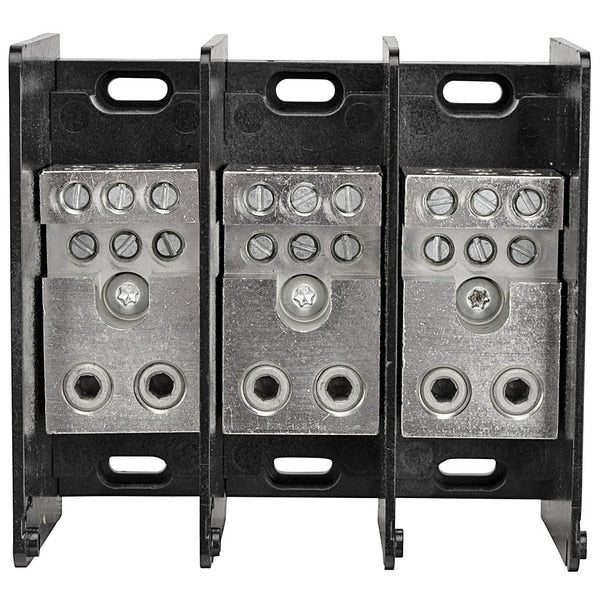

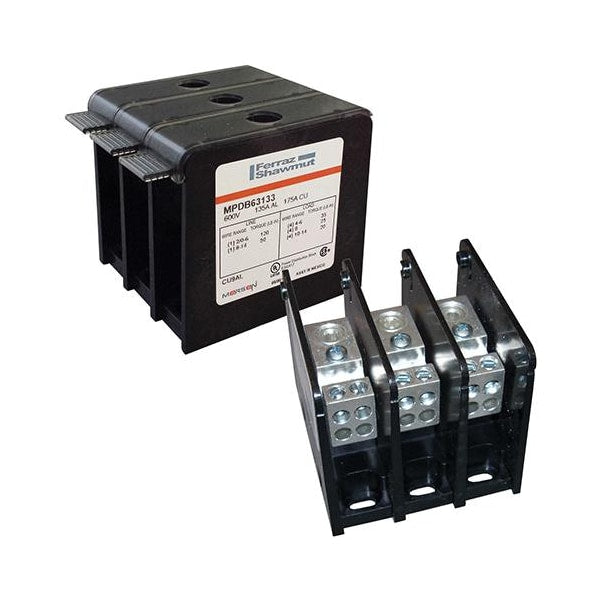

Product Description
The MERSEN MPDB67543 is a next-generation power distribution block that provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets requirements for fixed junction tap-off points and is UL and CSA approved. It meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.
- Single or dual primary connection
- Up to 20 secondary connections
- Individual cross connections for each layer
Product Highlights
The MERSEN MPDB67543 power distribution block is ideal for splicing cables and splitting primary power into secondary circuits.
Product Information
Standard Information
-
Brand: MERSEN
-
Manufacturer Part Number: MPDB67543
-
Country of Origin: Mexico
Technical Specifications
-
Item number: MPDB67543
-
Description: Open-Style PDB UL 1953 1000V 360A Tin-plated Aluminum - 460A 3-Pole 2 - 6 openings; 4/0-#6 --- #2-#14 Box to Box
-
EAN/UPC Code: 782001452025
-
Rated voltage AC UL: 1000 V
-
Rated voltage DC UL: 1000 V
-
Frequency (Hz): 50/60 Hz
-
Ampere Rating (AL): 360 A
-
Ampere Rating (CU): 460 A
-
ROHS Compliant: Yes
-
AC or DC: AC/DC
-
Short Circuit Rating (Class CC): 100 kA with 30A Fuse
-
Short Circuit Rating (Class G): 100 kA with 60A Fuse
-
Short Circuit Rating (Class J): 100 kA with 600A Fuse
-
Short Circuit Rating (Class L): 100 kA with 600A Fuse
-
Short Circuit Rating (Class RK1): 100 kA with 400A Fuse
-
Short Circuit Rating (Class RK5): 100 kA with 200A Fuse
-
Short Circuit Rating (Standalone): 10 kA
-
Short Circuit Rating (Class T): 100 kA with 600A Fuse
-
Number of Poles: 3
-
Connector Material: Tin-plated Aluminum
-

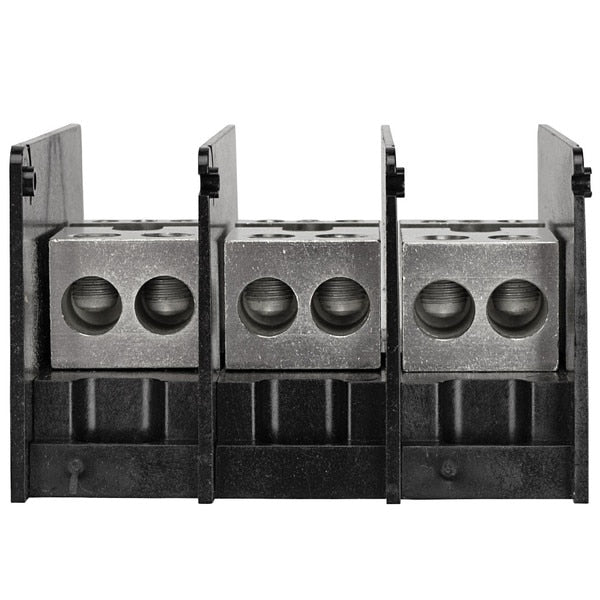

Number of Openings per Pole (Primary): 2
-

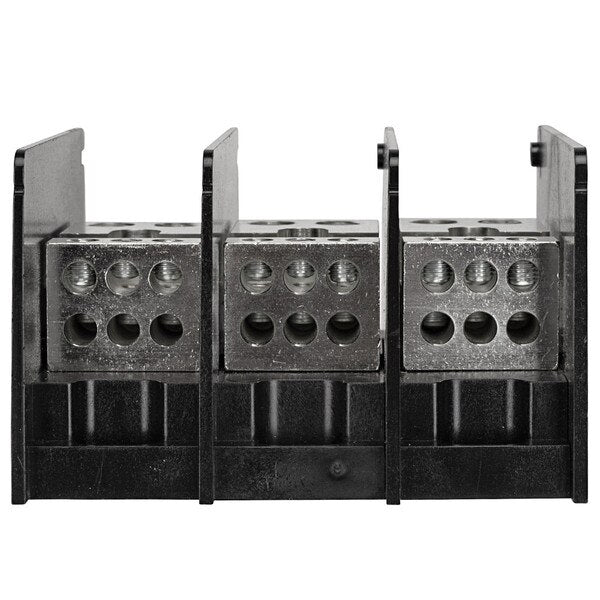

Number of Openings per Pole (Secondary): 6
-
Connector Type (Primary): Box
-
Connector Type (Secondary): Box
-
Hex/Screw Size & Type (Primary): 1/2-20 x .75
-
Hex/Screw Size & Type (Secondary): 5/16-24 x .38
-
Hole Diameter (Primary): 0.56 in
-
Hole Diameter (Secondary): 0.31 in
-
Torque Rating (Primary): 4/0-#3 150; #4 100; #6 80
-
Torque Rating (Secondary): #2-#3 50; #4-#6 35; #8 25; #10-#14 20
-
Wire Range (Primary): 4/0-#6
-
Wire Range (Secondary): #2-#14
-
Installation Mounting: Direct Screw Mount
-
Product Width: 5.28 in
-
Product Length: 3.08 in
-
Product Height: 3.25 in
-
Product group: Power Distribution Blocks
-
Body/Insulating Material: Glass Filled Polycarbonate
-
Product Weight: 1.6 lb
-
UNSPSC Code: 39120000
-
Brand: Mersen
-
Current Rating: 350 A
-
Manufacturer Part Number: MPDB67543
-
Primary Type: Power Distribution Block
-
Series: MPDB Series
-
Unit of Measure: EA
-
Voltage Rating: 600 VAC
-
Mounting Hole Dia.: 0.56 in, 0.31 in
-
Load Side Stud Size: 5/16-24 x .38"
-
Line Side Stud Size: 1/2-20 x 3/4"
-
Item: Power Distribution Block
-
Maximum Voltage: 1,000 V AC/DC
-
Housing Material: Glass-Filled Polycarbonate
-
Maximum Operating Temperature: 80 Degrees C
-
Mounting Type: Screw
-
Connector Type: Box Lug
-
Fuse UL Class: UL1953 Open-style
-
Amp Range: 360 to 460A
-
Wire Range: 6 AWG to 4/0 AWG, 14 AWG to 2 AWG
-
Primary Connections/Pole: 2
-
Secondary Connection/Pole: 6
-
Short Circuit Current Rating: 100 kA
-
Type: Intermediate Open Style
-
Load Side Connections Per Pole: 6
-
Line Side Connection Type: Screw Connection
-
Load Side Connection Type: Screw Connection
-
Packaging: Box
-
Line Side Wire/Stud Size: 4/0 - #6CU/AL
-
Part Status: Active
-
Load Side Wire/Stud Size: 2 - #14CU/AL
-
Voltage - Rated: 1000 V
-
Current Rating (Amps): 460 A
-
Line Side Connections Per Pole: 2
