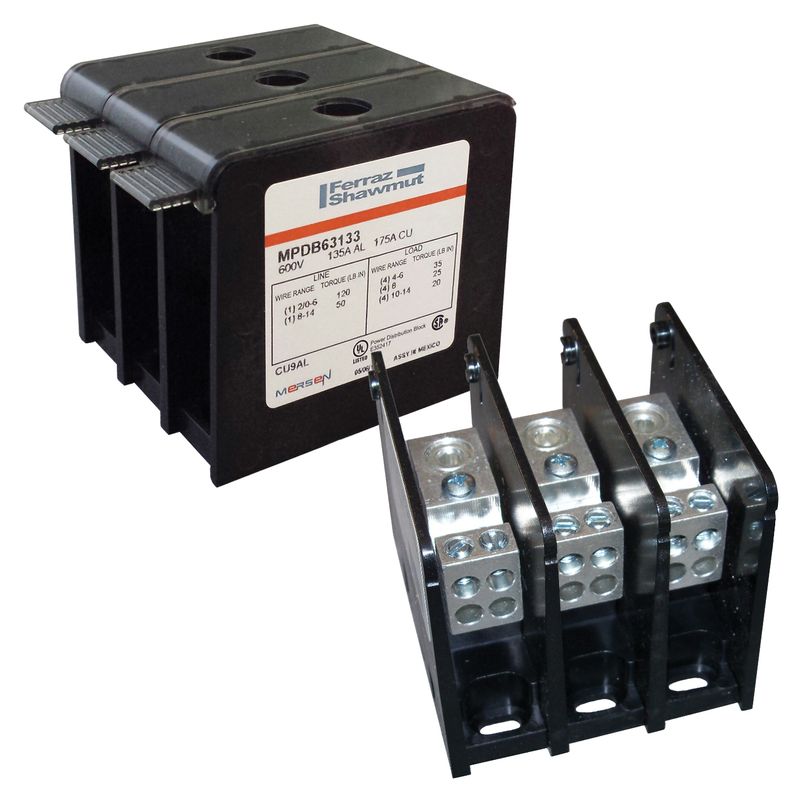

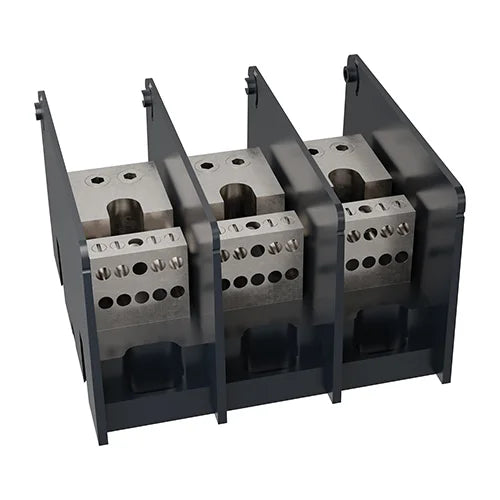

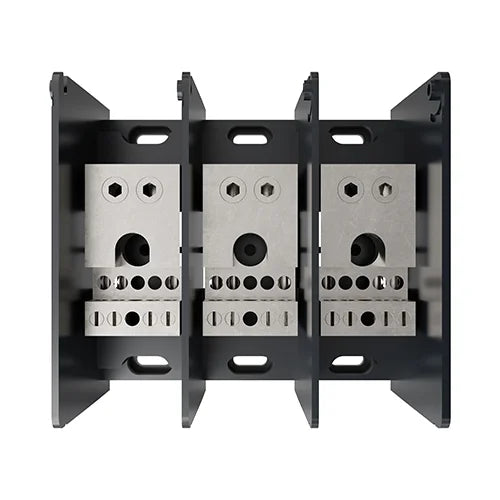

Mersen MPDB67533 Mpdb Series Ul 1953 Open-Style Power Distribution Blocks

Product Description

The MERSEN MPDB67533 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. It is UL and CSA approved while meeting spacing requirements for feeder and branch circuits. Offered in aluminum and copper.

• Safe and easy method of splicing cables
• Splits primary power into secondary circuits
• Meets spacing requirements for feeder and branch circuits

Product Highlights

The MERSEN MPDB67533 power distribution block is ideal for splicing cables, splitting primary power, and meeting fixed junction tap-off point requirements.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67533

Technical Specifications

• Item number: MPDB67533
• Description: Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 3-Pole 2 - 10 openings; 2/0-#14 --- #6-#14 Box to Box
• EAN/UPC Code: 782001453961
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 270 A
• Ampere Rating (CU): 350 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 400A Fuse
• Short Circuit Rating (Class L): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 100A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 400A Fuse
• Number of Poles: 3-Pole
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 10
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 7/16-20 x .55
• Hex/Screw Size & Type (Secondary): 1/4-28 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.21 in
• Torque Rating (Primary): 2/0-#6 120; #8-#14 50
• Torque Rating (Secondary): #6 28; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #6-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 5.28 in
• Product Length: 3.08 in
• Product Height: 3.25 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• UNSPSC Code: 39120000
• Brand: Mersen
• Current Rating: 350 A
• Manufacturer Part Number: MPDB67533
• Primary Type: Power Distribution Block
• Series: MPDB Series
• Voltage Rating: 600
• Material: Polycarbonate
• Wire Size: 14 to 2/0 AWG, 14 to 6 AWG
• Application: Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
• Type: Intermediate Open Style
• Color: Black
• Finish: TiN Coated
